Same model may have multiple batches, images only for reference.

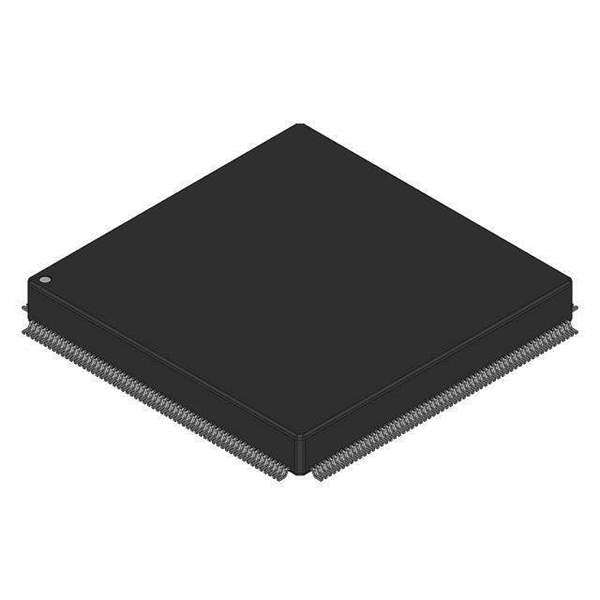

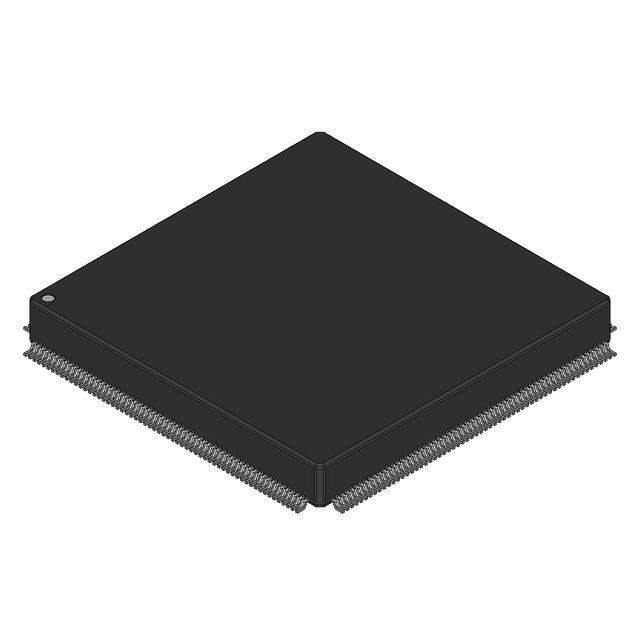

MC68EN360AI25VL Real Image
Same model may have multiple batches, images only for reference.

MC68EN360AI25VL

Part No MC68EN360AI25VL
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU M683XX 25MHZ 240FQFP
Datasheet
MC68EN360AI25VL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Not For New Designs
Core Processor CPU32+
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 25MHz
Co-Processors/DSP Communications; CPM
RAM Controllers DRAM
Graphics Acceleration No
Ethernet 10 Mbps (1)
Voltage - I/O 3.3V
Temperature Range - Operating 0°C to 70°C (TA)
Security Package / Case 240-BFQFP
Case / Package 240-FQFP (32x32)
Additional Interfaces SCC, SMC, SPI
Win Source Part Number 084470-MC68EN360AI25VL
Family Name MC68EN360
Introduction Date September 29, 2004
ECCN 3A991.a.2
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2019
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MC68EN360AI25VL CAD Model

Description

The NXP MC68EN360AI25VL is a CPU32+ core processor with a 32-bit part core size.

  • Frequency: 25MHz
  • Package: 240-FQFP (32x32)
  • RAM Controllers: DRAM
  • Additional Interfaces: SCC, SMC, and SPI
  • Ethernet: 10 Mbps (1)
  • Co-processors/DSP: CPM
  • Graphics Acceleration: Not equipped
  • Display and Interface Controllers: Not equipped
  • Status: Not for new designs
  • Estimated EOL date: 2019
  • Operating Temperature Range: 0°C to 70°C (TA)
  • Voltage for I/O: 3.3V
