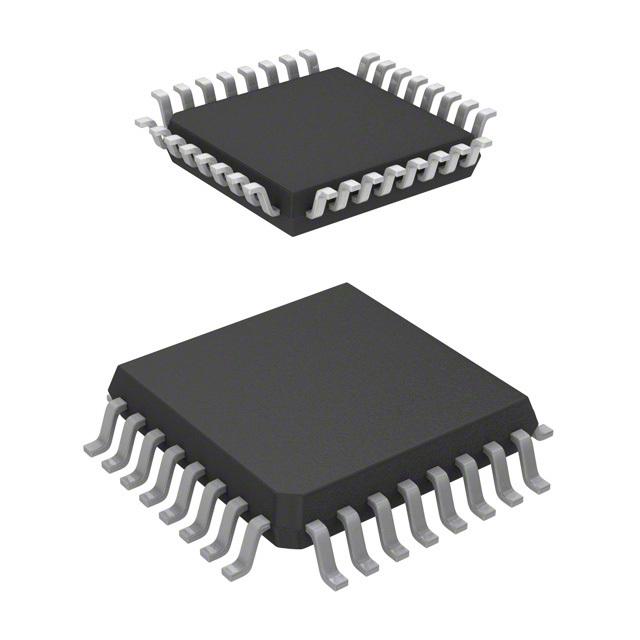

MC56F8013MFAE Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

MC56F8013MFAE

Part No MC56F8013MFAE
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 16KB FLASH 32LQFP
Datasheet
MC56F8013MFAE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor 56800E
Part Core Size 16-Bit
Speed(Frequency) 32MHz
Number of I/O 26
Program Memory Size 16KB (8K x 16)
Program Memory Type FLASH
Data RAM Size 2K x 16
Supply Voltage - Operating 3 V to 3.6 V
Data Converters A/D 6x12b
Temperature Range - Operating -40°C to 125°C (TA)
Case / Package 32-LQFP (7x7)
Win Source Part Number 207896-MC56F8013MFAE
Ultra Librarian 3D Model Ultra Librarian MC56F8013MFAE CAD Model

Description

The NXP MC56F8013MFAE is an integrated circuit that is designed to operate within a temperature range of -40°C to 125°C.

  • Temperature Range: -40°C to 125°C
  • Mounting: Surface mount technology
  • Package: 32-LQFP (7x7)
  • Supply Voltage: 3 V to 3.6 V
  • Core Processor: 56800E
  • Program Memory Size: 16KB (8K x 16)
  • Program Memory Type: FLASH
  • Data Converter: A/D 6x12b
  • I/O: 26
  • Status: Active component widely used in the electronics industry
