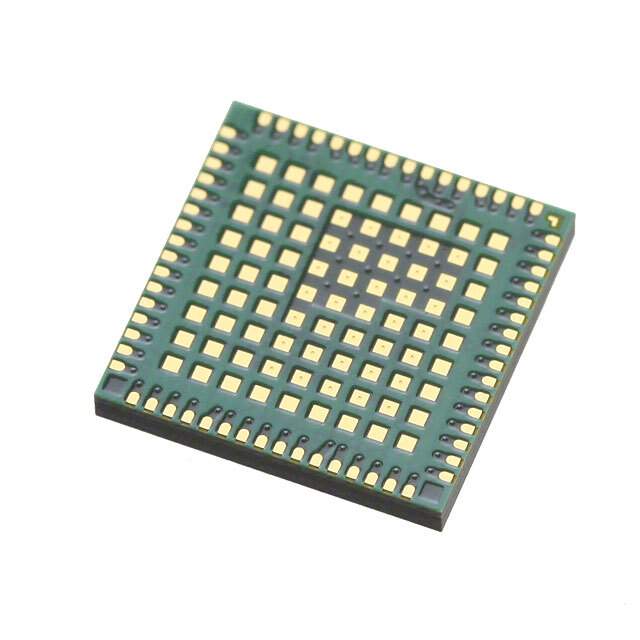

MC13224V Real Image
Same model may have multiple batches, images only for reference.

MC13224V

Part No MC13224V
Manufacturer Freescale Semiconductor - NXP
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU 802.15.4 145TFLGA / MODULE 802.15.4 CHIP
Datasheet
MC13224V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Tray
Status Obsolete(EOL)
Type TxRx + MCU
RF Family/Standard 802.15.4
Protocol Zigbee
Modulation O-QPSK
Frequency 2.4GHz
Data Rate (Max) 250kbps
Power - Output 4dBm
Sensitivity -100dBm
Memory Size 128kB Flash, 80kB ROM, 96kB SRAM
Serial Interfaces I2C, I2S, JTAG, SPI, UART
GPIO 64
Supply Voltage - Operating 2 V to 3.6 V
Current - Receiving 22mA to 24mA
Current - Transmitting 29mA
Temperature Range - Operating -40°C to 105°C
Dimension 145-TFLGA
Win Source Part Number 111836-MC13224V
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Wireless
Family Name MC13224V
Introduction Date January 30, 2009
ECCN 5A002.a.1
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MC13224V CAD Model

Description

The NXP MC13224V is a TxRx + MCU integrated circuit designed for use in wireless electronic applications.

  • Frequency: 2.4GHz
  • Protocol: Zigbee
  • Memory: 128kB flash, 80kB ROM, and 96kB SRAM
  • Power Output: 4dBm
  • Sensitivity: -100dBm
  • Data Rate (max): 250kbps
  • Supply Voltage: 2 V to 3.6 V
  • Temperature Range: -40°C to 105°C
  • Mounting: 145-TFLGA case/package
  • GPIO: 64
  • Current Transmitting: 29mA
  • Current Receiving: 22mA to 24mA
  • Category: RF/IF and RFID
  • Status: Obsolete (EOL)
