Same model may have multiple batches, images only for reference.

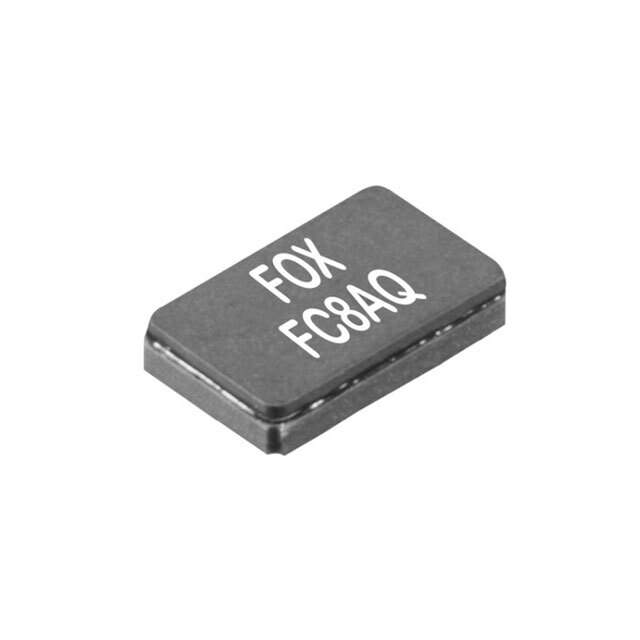

FC8AQCCMC4.0-T1 Real Image
Same model may have multiple batches, images only for reference.

FC8AQCCMC4.0-T1

Part No FC8AQCCMC4.0-T1
Manufacturer Fox Electronics
Catalog Oscillators
Datasheet
FC8AQCCMC4.0-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Fox Electronics
Series C8AQ
Package Tape & Reel
Type MHz Crystal
Frequency 4 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 150 Ohms
Operating Mode Fundamental
Temperature Range - Operating 0°C ~ 70°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.394" L x 0.177" W (10.00mm x 4.50mm)
Height - Seated (Max) 0.067" (1.70mm)
Other Names FC8AQCCMC4.0,FQ1045A-4.000,631-1033-2,631-1033-1,FQ1045A-4,631-1033-6,FQ1045A4
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0030
Win Source Part Number 1284988-FC8AQCCMC4.0-T1
Ultra Librarian 3D Model Ultra Librarian FC8AQCCMC4.0-T1 CAD Model

Description

The C8AQ MHz Crystal is a 2-SMD, no lead package that operates @ a frequency of 4 MHz.

  • Frequency: 4 MHz
  • Package / Case: 2-SMD, no lead
  • ESR (Equivalent Series Resistance): 150 Ohms
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 20pF
  • Operating Mode: Fundamental
  • Operating Temperature: 0°C ~ 70°C
  • Dimension: 0.394" L x 0.177" W (10.00mm x 4.50mm)
