Same model may have multiple batches, images only for reference.

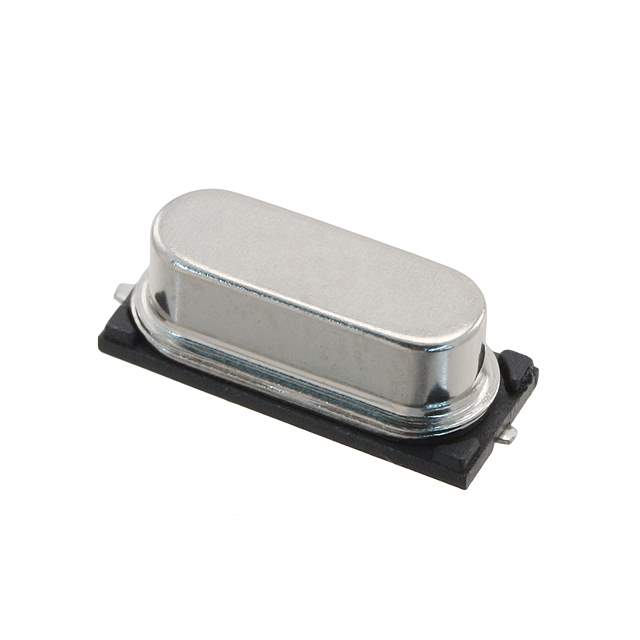

FC4SDCBMF10.0-T1 Real Image
Same model may have multiple batches, images only for reference.

FC4SDCBMF10.0-T1

Part No FC4SDCBMF10.0-T1
Manufacturer Fox Electronics
Catalog Oscillators
Datasheet
FC4SDCBMF10.0-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Fox Electronics
Series HC49SDLF
Package Tape & Reel
Type MHz Crystal
Frequency 10 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.461" L x 0.197" W (11.70mm x 5.00mm)
Height - Seated (Max) 0.177" (4.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1314833-FC4SDCBMF10.0-T1
Ultra Librarian 3D Model Ultra Librarian FC4SDCBMF10.0-T1 CAD Model

Description

The HC49SDLF series MHz crystal is a high-quality electronic component manufactured by Fox Electronics.

  • Type: It is a surface mount device (SMD) crystal.
  • Frequency: a frequency of 10 MHz.
  • Frequency Tolerance: a frequency tolerance of ±30ppm.
  • Mode: The crystal operates in a fundamental mode.
  • ESR: has an equivalent series resistance (ESR) of 60 Ohms.
  • Frequency Stability: The frequency stability is ±50ppm.
  • Load Capacitance: The load capacitance is 20pF.
  • Package: The HC-49/US package/case has a dimension of 0.461" L x 0.197" W (11.70mm x 5.00mm).
  • Height: a height of 0.177" (4.50mm) when seated.
  • Operating Temperature Range: The operating temperature range is -20°C to 70°C.
  • Application: This crystal is ideal for use in various electronic devices such as frequency synthesizers, microprocessors, and digital signal processors.
