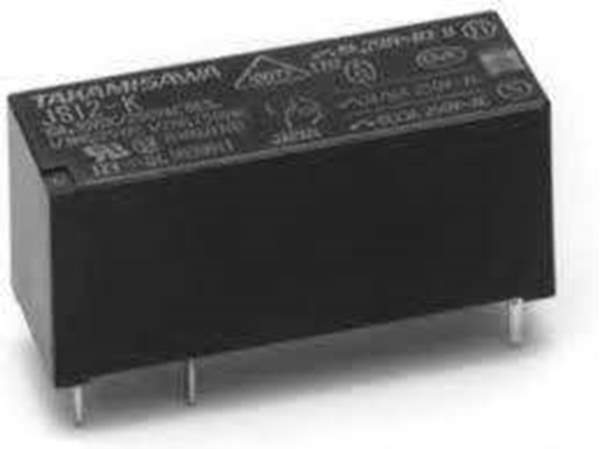

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer FCL Components
Category Contactors (Electromechanical)
Type High Sensitivity
Coil Voltage 24 VDC
Relay Contact Form 1 Form C (SPDT-NO, NC)
Contact Current Rating 8 A
Contact Termination Solder Pin
Switching Voltage 400 VAC, 300 VDC
Coil Type Non-Latching
Coil Resistance 2.35 kOhms
Ultra Librarian 3D Model Ultra Librarian JS-24N-K CAD Model

Description

UL class B (130°C) coil wire insulation<br />1 Form A (SPST-NO) or 1 Form C (SPDT) contact<br />Low profile and space saving<br />High sensitivity in small package<br />Various contact material options
