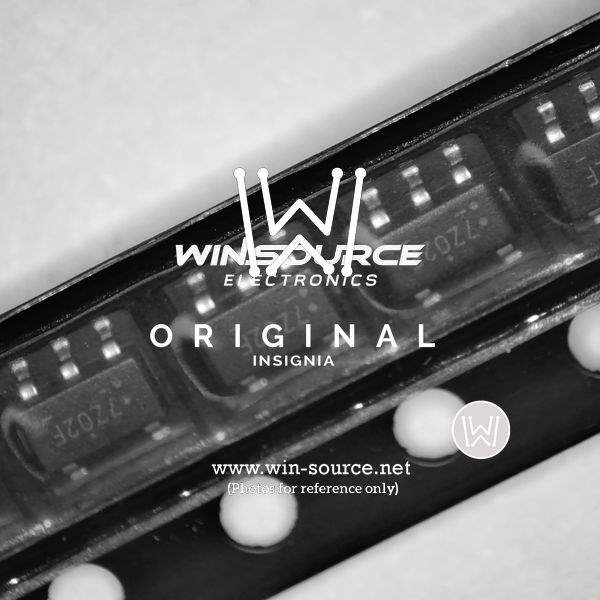

NC7SZ02M5X Real Image NC7SZ02M5X real image3874 NC7SZ02M5X Real Image
NC7SZ02M5X Real Image NC7SZ02M5X real image3874 NC7SZ02M5X Real Image
Same model may have multiple batches, images only for reference.

NC7SZ02M5X

Part No NC7SZ02M5X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC GATE NOR 1CH 2-INP SOT-23-5
Datasheet
NC7SZ02M5X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type NOR Gate
Number of Circuits 1
Number of Inputs 2
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent (Max) 2μA
Current - Output High, Low 32mA, 32mA
Max Propagation Delay @ V, Max CL 4.3ns @ 5V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SOT-23-5
Dimension SC-74A, SOT-753
Win Source Part Number 024799-NC7SZ02M5X
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian NC7SZ02M5X CAD Model

Description

The NC7SZ02M5X from Fairchild/ON Semiconductor is a NOR gate logic type that has a maximum propagation delay of 4.3ns @ 5V and 50pF.

  • Current rating: 32mA for both output high and low
  • Quiescent current: 2μA
  • Package: reel package
  • Quantity per package: 3k pcs
  • Operating temperature range: -40°C to 85°C
  • Case/package: SOT-23-5
