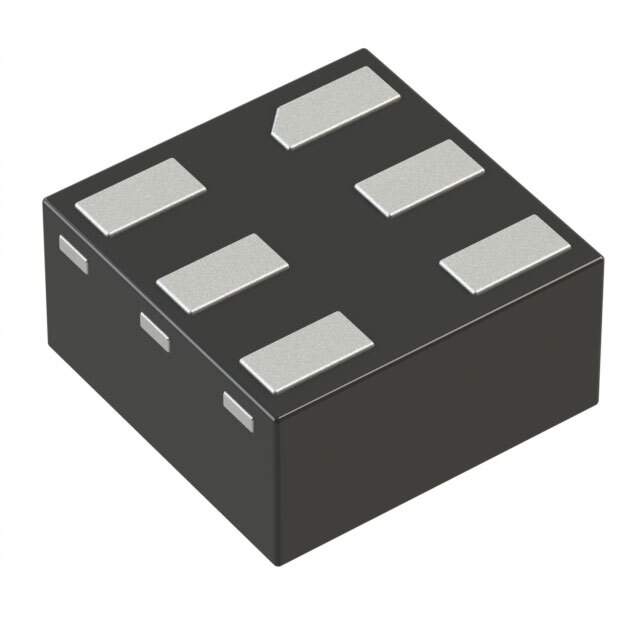

NC7SP00L6X Real Image
Same model may have multiple batches, images only for reference.

NC7SP00L6X

Part No NC7SP00L6X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC GATE NAND 1CH 2-INP 6MICROPAK
Datasheet
NC7SP00L6X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type NAND Gate
Number of Circuits 1
Number of Inputs 2
Supply Voltage - Operating 0.9 V to 3.6 V
Current - Quiescent (Max) 0.9μA
Current - Output High, Low 2.6mA, 2.6mA
Logic Level - Low 0.7 V to 0.9 V
Logic Level - High 1.6 V to 2.1 V
Max Propagation Delay @ V, Max CL 7ns @ 3.3V, 30pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 6-MicroPak
Dimension 6-UFDFN
Win Source Part Number 024745-NC7SP00L6X
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian NC7SP00L6X CAD Model

Description

The Fairchild/ON Semiconductor NAND Gate is a high-speed logic gate that is designed for use in digital electronics circuits.

  • Number of Circuits: Single
  • Mounting: Surface-mount technology (SMT)
  • Number of Inputs: Two
  • Output Current High: 2.6mA
  • Output Current Low: 2.6mA
  • Maximum Propagation Delay: 7ns @ 3.3V and 30pF
  • Quiescent Current: 0.9μA
  • Supply Voltage: 0.9V to 3.6V
  • Logic Level Low: 0.7V to 0.9V
  • Logic Level High: 1.6V to 2.1V
  • Package: 6-MicroPak
  • Dimension: 6-UFDFN
  • Supply and Demand Status: Balanced
  • Quantity per Package: 5k pieces
