The Fairchild/ON Semiconductor 024151-MOC205R2M is an isolator with a minimum DC current transfer ratio of 40% at 10mA and a maximum DC current transfer ratio of 80% at 10mA.

• Minimum DC Current Transfer Ratio: 40% @ 10mA
• Maximum DC Current Transfer Ratio: 80% @ 10mA
• Forward Voltage: 1.15V
• Input Type: DC
• Number of Channels: 1
• Isolation Voltage: 2500Vrms
• Vce Saturation (max): 400mV

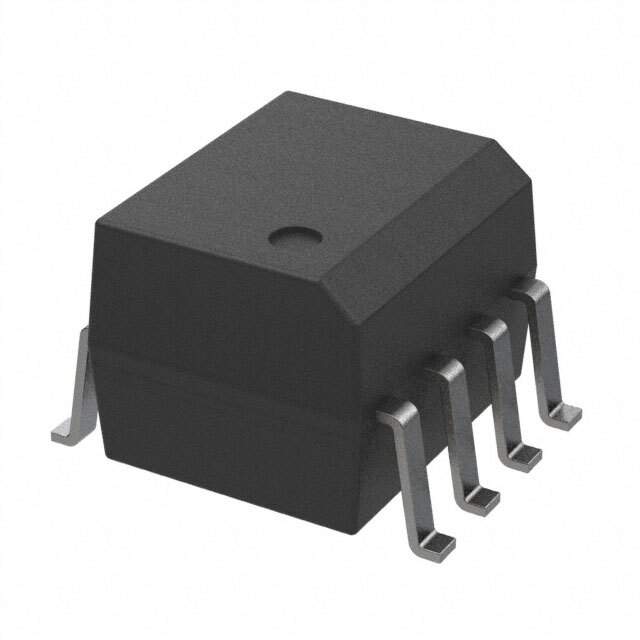

• Package: 8-SO Tall case
• Category: Isolators
• Status: Currently active
• Temperature Range: -40°C to 100°C
• Popularity Rating: Medium
• Package Contains: 2,500 pcs
