Same model may have multiple batches, images only for reference.

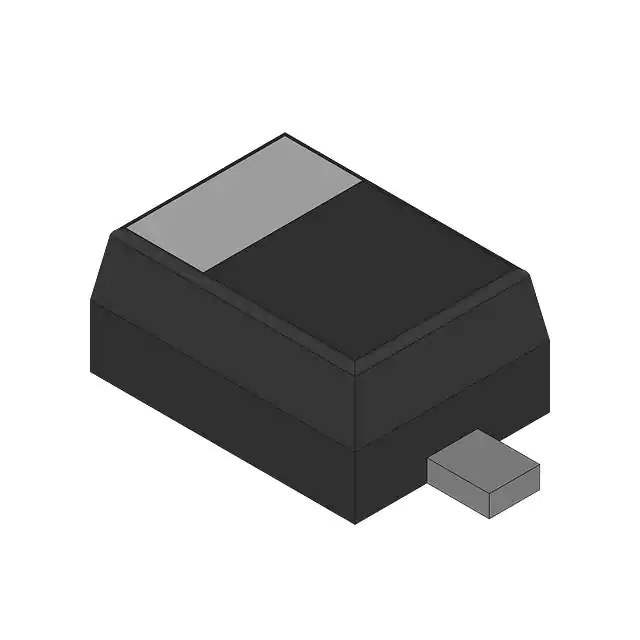

MMSZ5252B Real Image
Same model may have multiple batches, images only for reference.

MMSZ5252B

Part No MMSZ5252B
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 24V 500MW SOD123
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Fairchild/ON Semiconductor
Package Bulk
Product Status Active
Voltage - Zener (Nom) (Vz) 24 V
Tolerance ±5%
Power - Max 500 mW
Impedance (Max) (Zzt) 33 Ohms
Current - Reverse Leakage @ Vr 100 nA @ 18 V
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Temperature Range - Operating 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-123
Supplier Device Package SOD-123
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 642888-MMSZ5252B
Ultra Librarian 3D Model Ultra Librarian MMSZ5252B CAD Model

Description

The MMSZ5252B is a single zener diode from the diode category of discrete semiconductor products manufactured by Fairchild/ON Semiconductor.

  • Package: Bulk
  • Standard Package: 3,000 pieces
  • Tolerance: ±5%
  • Power Rating: 500 mW
  • Forward Voltage: 900 mV @ 10 mA
  • Reverse Leakage Current: 100 nA @ 18 V
  • Zener Voltage: 24 V
  • Impedance: 33 Ohms
  • Package Type: SOD-123
  • Mounting Type: Surface Mount
  • Temperature Range: -55°C to 150°C
  • Product Status: Active
  • REACH: Unaffected
