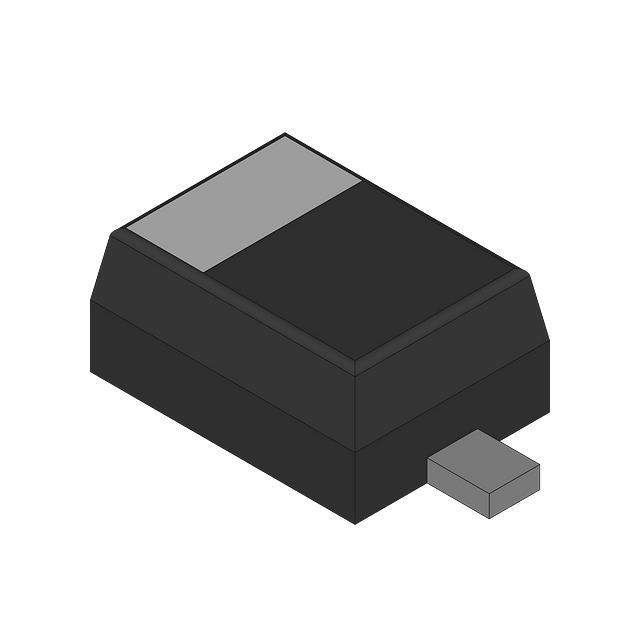

MMSZ5247B

Name: MMSZ5247B
Brand: Fairchild/ON Semiconductor
SKU: 236598
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MMSZ5247B
Manufacturer	Fairchild/ON Semiconductor
Catalog	Diodes - Zener - Single
Description	DIODE ZENER 17V 500MW SOD123 / Zener Diode Single 17V 5% 19Ohm 500mW Automotive 2-Pin SOD-123 T/R
Datasheet	MMSZ5247B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	ON Semiconductor
Packaging	Reel - TR
Status	Active
Voltage - Zener (Nom) (Vz)	17V
Tolerance	±5%
Maximum Power Dissipation	500mW
Impedance (Max) (Zzt)	19 Ohm
Current - Reverse Leakage @ Vr	100nA @ 13V
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Temperature Range - Operating	-55°C to 150°C
Mounting	SMD (SMT)
Case / Package	SOD-123
Win Source Part Number	059246-MMSZ5247B
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	MMSZ5247B
Introduction Date	July 15, 1996
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian MMSZ5247B CAD Model

Alternative Products

Description

The ON Semiconductor 059246-MMSZ5247B is a surface-mount zener diode with a voltage rating of 17V and a maximum power dissipation of 500mW.

Forward Voltage: 900mV @ 10mA
Reverse Leakage Current: 100nA @ 13V
Zener Impedance: 19 Ohm
Tolerance: ±5%
Package: SOD-123
Operating Temperature Range: -55°C to 150°C
Product Category: Discrete Semiconductor Products
