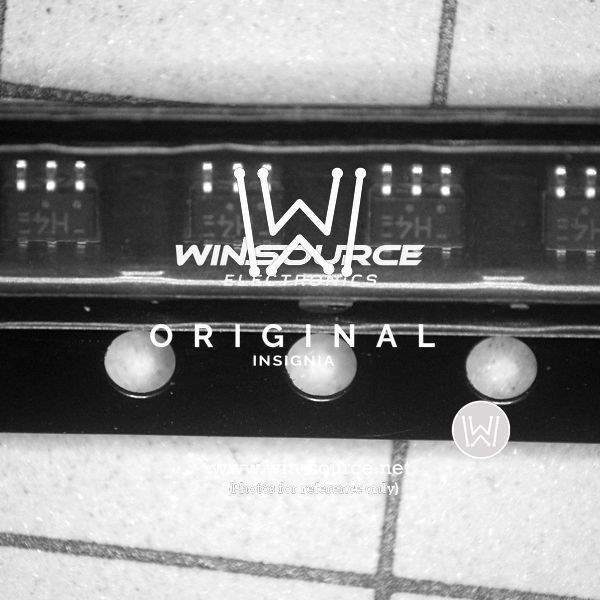

MMSZ5244B Fairchild/ON Semiconductor MMSZ5244B real image3517 MMSZ5244B Real Image
MMSZ5244B Fairchild/ON Semiconductor MMSZ5244B real image3517 MMSZ5244B Real Image
Same model may have multiple batches, images only for reference.

MMSZ5244B

Part No MMSZ5244B
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 14V 500MW SOD123
Datasheet
MMSZ5244B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 14V
Tolerance ±5%
Maximum Power Dissipation 500mW
Impedance (Max) (Zzt) 15 Ohm
Current - Reverse Leakage @ Vr 100nA @ 10V
Voltage - Forward (Vf) (Max) @ If 900mV @ 10mA
Temperature Range - Operating -55°C to 150°C
Mounting SMD (SMT)
Case / Package SOD-123
Win Source Part Number 059244-MMSZ5244B
Ultra Librarian 3D Model Ultra Librarian MMSZ5244B CAD Model

Description

The ON Semiconductor 059244-MMSZ5244B is a surface-mount zener diode with a voltage rating of 14V and a maximum power dissipation of 500mW.

  • Forward Voltage: 900mV @ 10mA
  • Reverse Leakage Current: 100nA @ 10V
  • Zener Impedance: 15 Ohm
  • Tolerance: ±5%
  • Package: SOD-123
  • Operating Temperature Range: -55°C to 150°C
  • Product Category: Discrete Semiconductor Products
