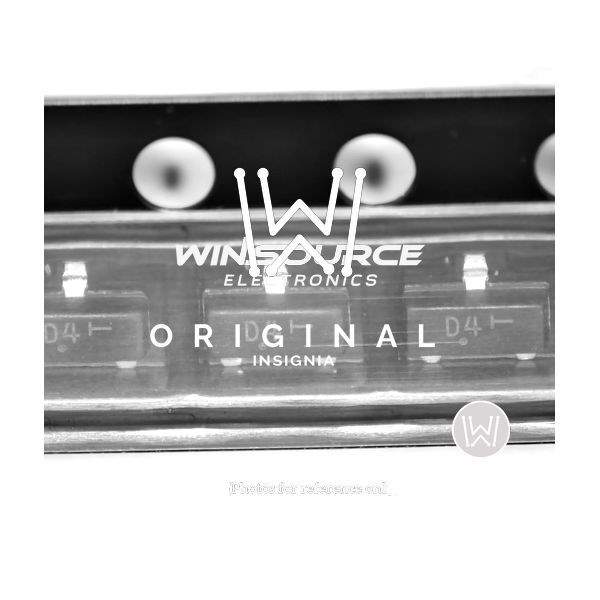

MMBD4148SE Fairchild/ON Semiconductor MMBD4148SE real image3352 MMBD4148SE real image3353
Same model may have multiple batches, images only for reference.
MMBD4148SE Fairchild/ON Semiconductor MMBD4148SE real image3352 MMBD4148SE real image3353
MMBD4148SE Fairchild/ON Semiconductor MMBD4148SE real image3352 MMBD4148SE real image3353
Same model may have multiple batches, images only for reference.

MMBD4148SE

Part No MMBD4148SE
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 100V 200MA SOT23
Datasheet
MMBD4148SE Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 1V @ 10mA
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 5μA @ 75V
Operating Temperature - Junction -55°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-23-3
Win Source Part Number 023664-MMBD4148SE
Family Name MM74HC14
Introduction Date January 12, 1999
ECCN EAR99
Country of Origin Israel
Halogen Free Compliant
Estimated EOL Date 2025
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Industrial
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian MMBD4148SE CAD Model

Description

The Fairchild/ON Semiconductor 023664-MMBD4148SE is a standard diode type with a DC reverse voltage of 100V and forward voltage of 1V @ 10mA.

  • Reverse Recovery Time: 4ns
  • Operating Temperature Range: -55°C to 150°C
  • Case/Package: SOT-23-3
  • Diode Configuration: 1 pair series connection
  • Current Average Rectified (Io): 200mA
  • Market Popularity: High demand
  • Package Contains: 3k pieces
