Same model may have multiple batches, images only for reference.

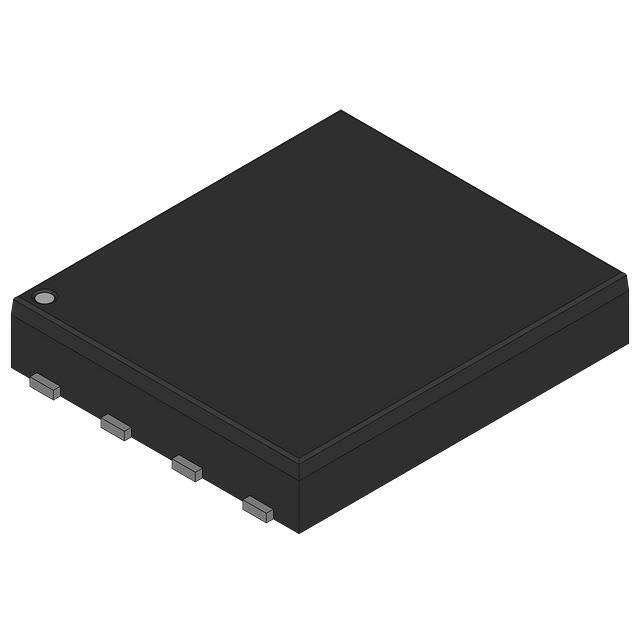

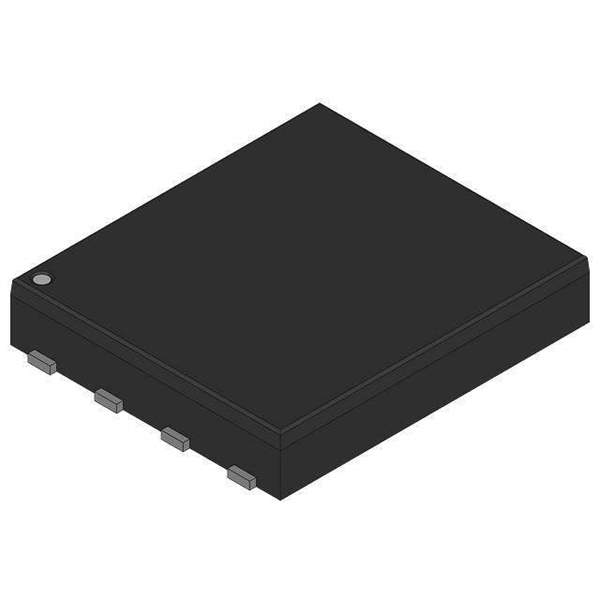

MBR460MFST3G Real Image
Same model may have multiple batches, images only for reference.

MBR460MFST3G

Part No MBR460MFST3G
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description RECTIFIER DIODE, SCHOTTKY, 4A, 6  /  Diode Schottky 60 V 4A Surface Mount 5-DFN (5x6) (8-SOFL)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Fairchild Semiconductor
Package Bulk
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 740 mV @ 4 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 60 V
Mounting SMD (SMT)
Package / Case 8-PowerTDFN, 5 Leads
Supplier Device Package 5-DFN (5x6) (8-SOFL)
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number MBR460
ECCN EAR99
HTSUS 8541.10.0080
Other Names 2156-MBR460MFST3G,ONSFSCMBR460MFST3G
Standard Package 1
Win Source Part Number 1221878-MBR460MFST3G
Ultra Librarian 3D Model Ultra Librarian MBR460MFST3G CAD Model

Description

The Fairchild Semiconductor MBR460MFST3G is a Schottky diode type semiconductor integrated circuit with a voltage DC reverse of 60V and an average rectified current of 4A from Fairchild Semiconductor.

  • Voltage DC Reverse: 60V
  • Average Rectified Current: 4A
  • Voltage Forward: 740mV @ 4A
  • Current Reverse Leakage: 200μA @ 60V
  • Package: 8-PowerTDFN, 5 Leads
  • Operating Temperature: -55°C to 175°C
  • Recovery Speed: Less than 500ns (>200mA (Io))
