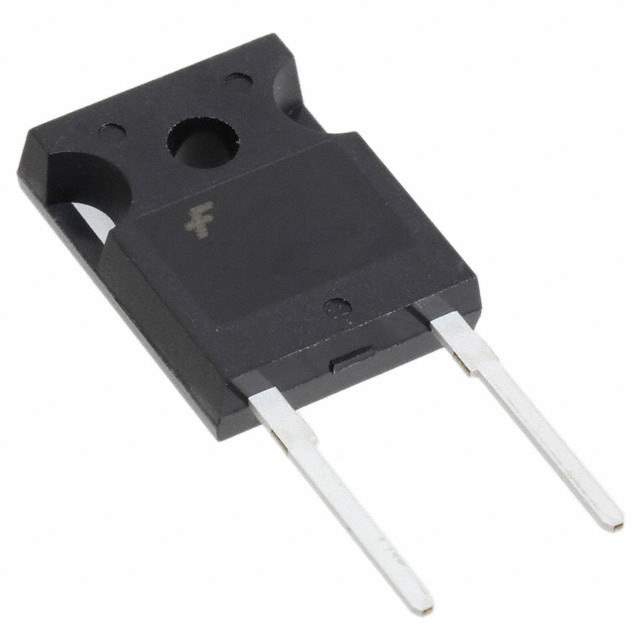

ISL9R1560G2_F085 Real Image
Same model may have multiple batches, images only for reference.

ISL9R1560G2_F085

Part No ISL9R1560G2_F085
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 15A TO247
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 2.2V @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 40ns
Current - Reverse Leakage @ Vr 100μA @ 600V
Mounting Through Hole
Case / Package TO-247-2
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 1049030-ISL9R1560G2_F085
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ISL9R1560G2_F085 CAD Model

Description

The Fairchild/ON Semiconductor ISL9R1560G2_F085 is a standard diode-type electronic component that has a maximum DC reverse voltage of 600V and an average rectified current of 15A.

  • Type: Standard Diode
  • Maximum DC Reverse Voltage: 600V
  • Average Rectified Current: 15A
  • Case/Package: TO-247-2
  • Status: Active
  • Popularity: Medium
  • Supply and Demand: Sufficient
