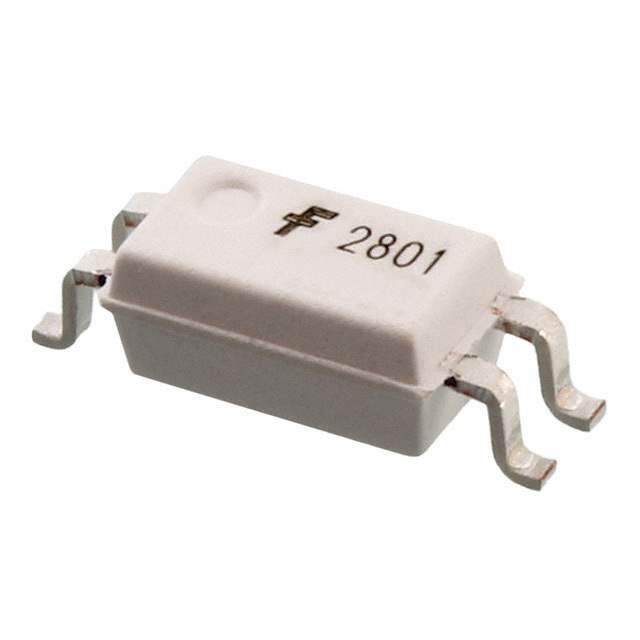

HMHA2801V Real Image
Same model may have multiple batches, images only for reference.

HMHA2801V

Part No HMHA2801V
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV TRANSISTOR 4SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 80% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 3μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.3V (Max)
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 068174-HMHA2801V
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Signal Processing, Industrial
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian HMHA2801V CAD Model

Description

The Fairchild/ON Semiconductor HMHA2801V is an isolator with a minimum DC current transfer ratio of 80% at 5mA and a maximum DC current transfer ratio of 600% at 5mA. It has a switching turn-on and turn-off time of 3μs and a rise and fall time of 3μs. The isolator has a forward voltage of 1.3V (Max) and an isolation voltage of 3750Vrms. It is a transistor output type isolator with a 4-mini-flat package. It is designed for use in power management, signal processing, and industrial applications. The isolator is a reliable and efficient component that can help enhance the performance of your system.
