Same model may have multiple batches, images only for reference.

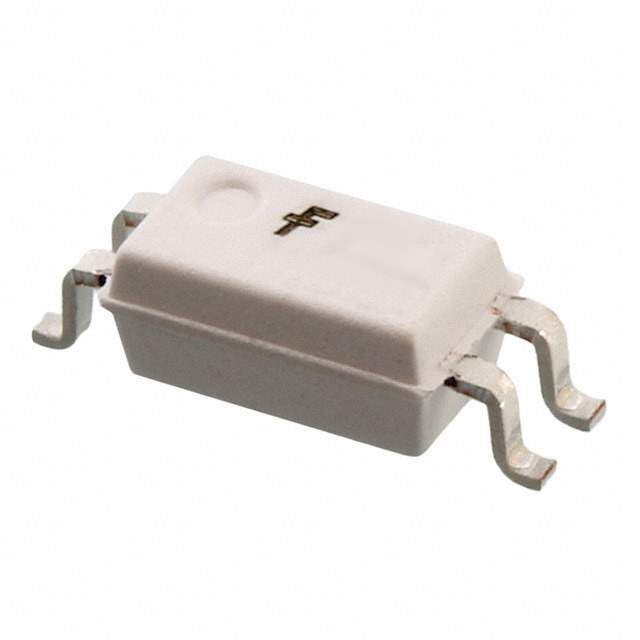

HMHA2801B Real Image
Same model may have multiple batches, images only for reference.

HMHA2801B

Part No HMHA2801B
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description HALF PITCH MINI-FLAT PACKAGE 4-PIN OPTOCOUPLERS
Datasheet
HMHA2801B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Minimum) 130% @ 5mA
Current Transfer Ratio (Maximum) 260% @ 5mA
Rise / Fall Time (Typ) 3μs, 3μs
Input Type DC
Output Type Transistor
Output Voltage MAX 80V
Output Current per Channel 50mA
Voltage - Forward (Vf) (Typ) 1.3V (Maximum)
Current - DC Forward (If) (Maximum) 50mA
Vce Saturation (Maximum) 300mV
Operating Temperature Range -55°C ~ 100°C
Mounting SMD
Package 4-SOIC (0.173", 4.40mm)
Manufacturer Package 4-Mini-Flat
Win Source Part Number 1181539-HMHA2801B
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Family Name HMHA2801
Introduction Date March 15, 2002
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2025
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian HMHA2801B CAD Model

Description

The HMHA2801B is a transistor output optocoupler manufactured by Fairchild/ON Semiconductor, used in isolator applications.

  • Package: 4-SOIC (0.173", 4.40mm)
  • Output Voltage (Maximum): 80V
  • Output Current per Channel: 50mA
  • Current Transfer Ratio (Minimum) @ 5mA: 130%
  • Current Transfer Ratio (Maximum) @ 5mA: 260%
  • Vce Saturation: 300mV
  • Rise/Fall Time (typ): 3μs
