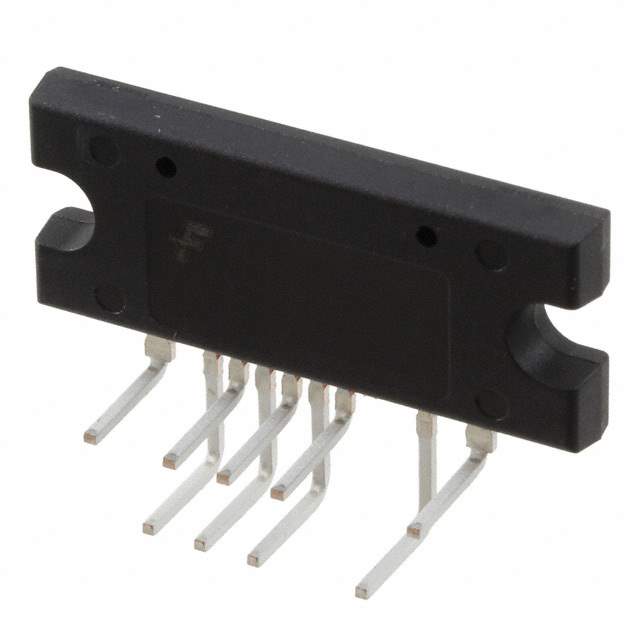

FSFR1800XS Real Image
Same model may have multiple batches, images only for reference.

FSFR1800XS

Part No FSFR1800XS
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description Fairchild Power Switch (FPS™) for Half-Bridge Resonant Converters
Datasheet
FSFR1800XS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Series FSFR-XS
Packaging Tube
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 500V
Topology Half-Bridge
Voltage - Start Up 12.5V
Supply Voltage 10 V ~ 25 V
Duty Cycle 50%
Frequency - Switching Up to 300kHz
Power (Watts) 260W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Features Frequency Control
Operating Temperature Range -40°C ~ 130°C (TJ)
Package 10-SIP Module, 9 Leads, Formed Leads
Manufacturer Package 9-SIP
Mounting Style Through Hole
Win Source Part Number 1175951-FSFR1800XS
Manufacturer Homepage www.fairchildsemi.com
Family Name FSFR1800XS
Introduction Date October 12, 2010
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Limited
Quantity per package 475
Ultra Librarian 3D Model Ultra Librarian FSFR1800XS CAD Model

Description

The FSFR1800XS is an integrated circuit half-bridge topology power switch manufactured by Fairchild/ON Semiconductor.

  • Topology: half-bridge
  • Designed for: isolated output applications
  • Output Power: 260W
  • Voltage Breakdown: 500V
  • Frequency Switching: up to 300kHz
  • Package: 10-SIP module with 9 leads and formed leads
  • Supply Voltage Range: 10V to 25V
  • Fault Protections: current limiting, over-temperature, and over-voltage
  • Popularity: medium
  • Supply and demand status: limited
