Same model may have multiple batches, images only for reference.

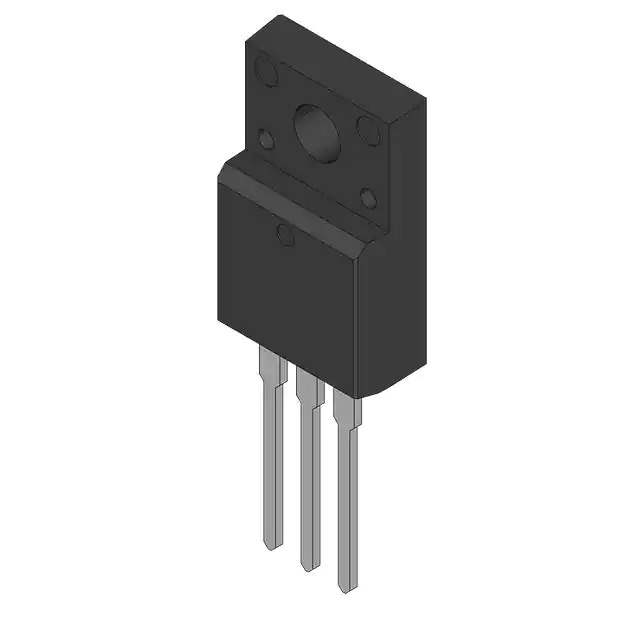

FGPF4536 Real Image
Same model may have multiple batches, images only for reference.

FGPF4536

Part No FGPF4536
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description INSULATED GATE BIPOLAR TRANSISTO
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr Fairchild/ON Semiconductor
Package Bulk
Product Status Active
IGBT Type Trench
Voltage - Collector Emitter Breakdown (Max) 360 V
Current - Collector Pulsed (Icm) 220 A
Vce(on) (Max) @ Vge, Ic 1.8V @ 15V, 50A
Power - Max 28.4 W
Input Type Standard
Gate Charge 47 nC
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack
Supplier Device Package TO-220F-3
Standard Package 381 pcs
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 130503-FGPF4536
Ultra Librarian 3D Model Ultra Librarian FGPF4536 CAD Model

Description

The 130503-FGPF4536 is a single IGBT transistor in a TO-220-3 Full Pack package. It is designed for use in discrete semiconductor products and specifically in transistors.

  • IGBT Type: Trench
  • Maximum Power: 28.4 W
  • Voltage Breakdown: 360 V
  • Collector Current (Pulsed): 220 A
  • Gate Charge: 47 nC
  • Mounting: Through-Hole
  • Packaging: Bulk
  • Status: Active
  • Manufacturer: Fairchild/ON Semiconductor
