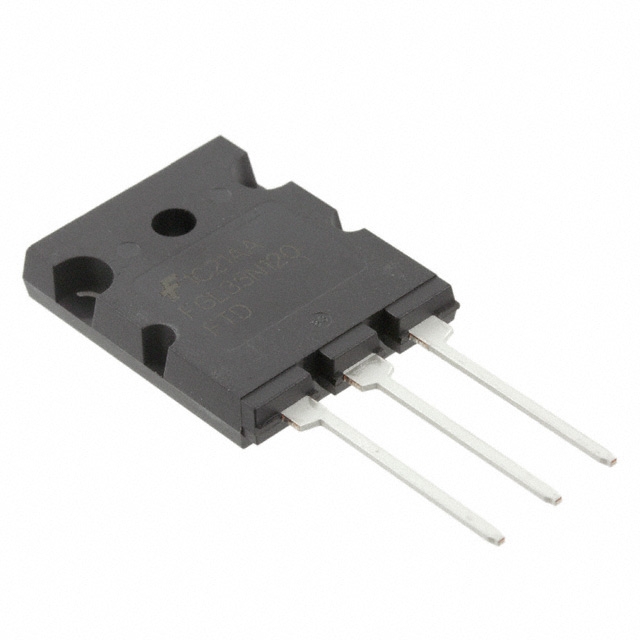

FGL35N120FTDTU Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FGL35N120FTDTU

Part No FGL35N120FTDTU
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description IGBT 1200V 70A 368W TO264
Datasheet
FGL35N120FTDTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
IGBT Type Trench Field Stop
VCEO Maximum Collector-Emitter Breakdown Voltage 1200V
Maximum Current Collector 70A
Pulsed Collector Current 105A
Collector-emitter saturation voltage(Max) 2.2V @ 15V, 35A
Maximum Power Dissipation 368W
Total Switching Energy(Ets) 2.5mJ (on), 1.7mJ (off)
Input Type Standard
Gate Charge 210nC
Turn-on and Turn-off delay time 34ns/172ns
Testing Conditions 600V, 35A, 10 Ohm, 15V
Reverse Recovery Time (trr) 337ns
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-264-3
Win Source Part Number 1038686-FGL35N120FTDTU
Popularity Medium
Supply and Demand Status Balance
Quantity per package 375
Ultra Librarian 3D Model Ultra Librarian FGL35N120FTDTU CAD Model

Description

The Fairchild/ON Semiconductor 1038686-FGL35N120FTDTU is a through-hole mounted trench field stop IGBT type transistor.

  • Maximum Collector-Emitter Breakdown Voltage: 1200V
  • Maximum Collector Current: 70A
  • Total Switching Energy (Ets): 2.5mJ (on) and 1.7mJ (off)
  • Turn-On Delay Time: 34ns
  • Turn-Off Delay Time: 172ns
  • Package Quantity: 375
