Same model may have multiple batches, images only for reference.

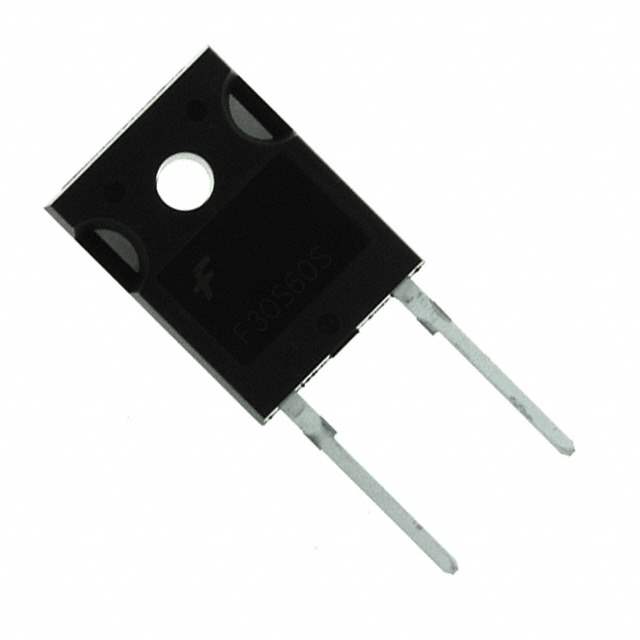

FFH30S60STU Real Image
Same model may have multiple batches, images only for reference.

FFH30S60STU

Part No FFH30S60STU
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description Rectifier Diode Switching 600V 30A 30ns 2-Pin(2+Tab) TO-247 Tube / DIODE GEN PURP 600V 30A TO247
Datasheet
FFH30S60STU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Max) @ If 2.6V @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 40ns
Current - Reverse Leakage @ Vr 100μA @ 600V
Mounting Through Hole
Case / Package TO-247-2
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 040278-FFH30S60STU
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 450
Family Name FFH30S60S
Introduction Date September 11, 2007
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian FFH30S60STU CAD Model

Description

The FFH30S60STU standard diode from Fairchild/ON Semiconductor has the following features:

  • Voltage DC Reverse (Vr) (Max): 600V
  • Average Rectified Current (Io): 30A
  • Voltage Forward (Vf) (Max) at If: 2.6V @ 30A
  • Reverse Recovery Time (trr): 40ns
  • Current Reverse Leakage @ Vr: 100μA @ 600V
  • Application: Rectifier circuits and power supplies
  • Supply and Demand: Limited
  • Package: TO-247-2
