Same model may have multiple batches, images only for reference.

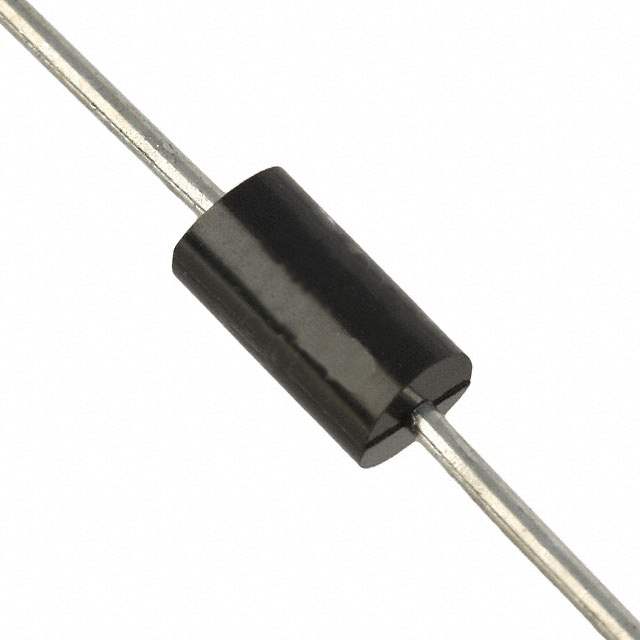

EGP20D Real Image
Same model may have multiple batches, images only for reference.

EGP20D

Part No EGP20D
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description Rectifier Diode Switching 200V 2A 50ns 2-Pin DO-15 T/R / DIODE GEN PURP 200V 2A DO204AC
Datasheet
EGP20D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 950mV @ 2A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 5μA @ 200V
Capacitance @ Vr, F 70pF @ 4V, 1MHz
Mounting Through Hole
Case / Package DO-15
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 015209-EGP20D
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 4k pcs
Family Name EGP20D
Introduction Date March 04, 1999
ECCN EAR99
Country of Origin Taiwan
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian EGP20D CAD Model

Description

EGP20D Diode

The EGP20D Diode is a high-performance, general-purpose rectifier designed for a wide range of electronic applications. With its robust construction and reliable functionality, it's ideal for those looking to enhance the durability and efficiency of their electronic circuits.

Applications

  • Power supplies
  • Switching power converters
  • Free-wheeling diodes

Features and Benefits

  • High efficiency and low forward voltage drop
  • Small package size for optimized PCB layout
  • High surge current capability

Additional details may include industry-standard compliance and environmentally friendly production.
