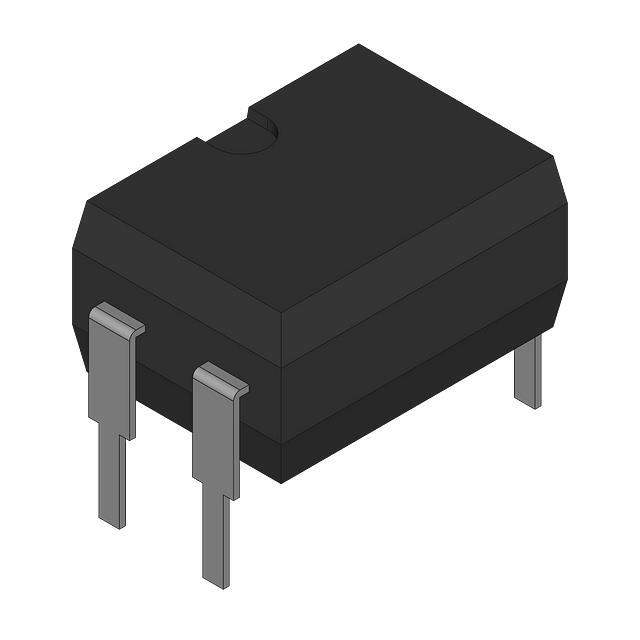

DF06S2 Real Image
Same model may have multiple batches, images only for reference.

DF06S2

Part No DF06S2
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECTIFIER DIODE, 1 PHASE, / Bridge Rectifier Single Phase Standard 600 V Surface Mount 4-SDIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Fairchild Semiconductor
Package Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SDIP
ECCN EAR99
HTSUS 8541.10.0080
Other Names 2156-DF06S2,ONSONSDF06S2
Standard Package 1
Win Source Part Number 1192334-DF06S2
Ultra Librarian 3D Model Ultra Librarian DF06S2 CAD Model

Description

The DF06S2 is a single-phase bridge rectifier diode manufactured by Fairchild Semiconductor. Fairchild Semiconductor DF06S2

  • Current Average Rectified (Io): 2 A
  • Voltage Forward (Vf) (Max) @ If: 1.1 V @ 1 A
  • Current Reverse Leakage @ Vr: 5 μA @ 600 V
  • Voltage Peak Reverse (Max): 600 V
  • Package: 4-SMD, Gull Wing
  • Operating Temperature: -55°C to 150°C (TJ)
  • Ideal For: Discrete Semiconductor Products
