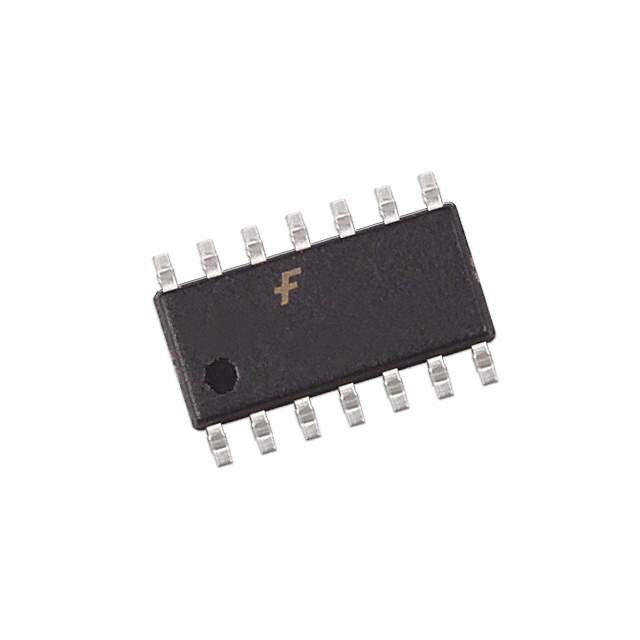

74LVX00SJX Real Image
Same model may have multiple batches, images only for reference.

74LVX00SJX

Part No 74LVX00SJX
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC GATE NAND 4CH 2-INP 14-SOIC
Datasheet
74LVX00SJX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Series 74LVX
Packaging Reel package
Part Status Obsolete(EOL)
Logic Type NAND Gate
Number of Circuits 4
Number of Inputs 2
Operating Supply Voltage 2 V ~ 3.6 V
Maximum Quiescent Current 2μA
Current - Output High, Low 4mA, 4mA
Logic Level - Low 0.5 V ~ 0.8 V
Logic Level - High 1.5 V ~ 2.4 V
Max Propagation Delay @ V, Max CL 9.7ns @ 3.3V, 50pF
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Manufacturer Package 14-SOP
Package 14-SOIC (0.209", 5.30mm Width)
Win Source Part Number 765917-74LVX00SJX
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian 74LVX00SJX CAD Model

Description

The N/A 74LVX00SJX is a NAND gate logic type integrated circuit (IC) with a 14-SOIC (0.209", 5.30mm Width) package.

  • Package: 14-SOIC (0.209", 5.30mm Width)
  • Circuits: 4
  • Inputs: 2
  • Temperature Range: -40°C to 85°C
  • Operating Supply Voltage: 2 V to 3.6 V
  • Propagation Delay: 9.7ns @ 3.3V, 50pF
  • Logic Level Low: 0.5 V to 0.8 V
  • Logic Level High: 1.5 V to 2.4 V
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply/Demand Status: Balanced
  • Applications: Various electronic applications.
