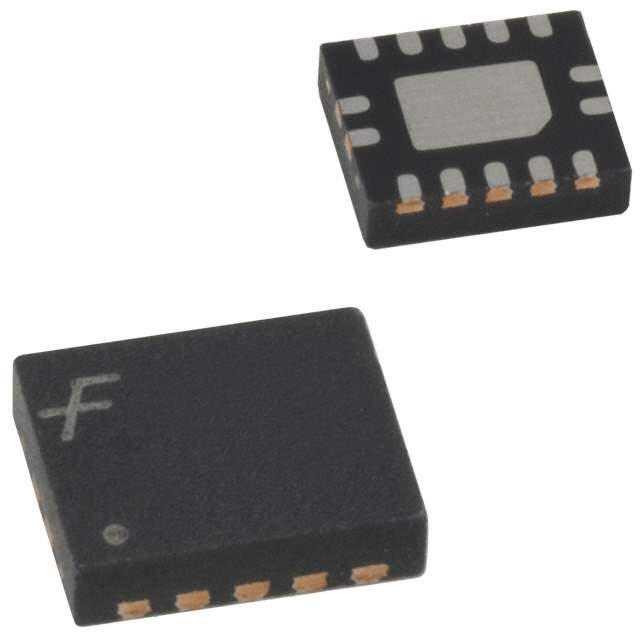

74LCX14BQX Real Image
Same model may have multiple batches, images only for reference.

74LCX14BQX

Part No 74LCX14BQX
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC INVERTER HEX SCHMITT 14DQFN
Datasheet
74LCX14BQX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type Inverter
Number of Circuits 6
Number of Inputs 6
Features Schmitt Trigger
Supply Voltage - Operating 2 V to 3.6 V
Current - Quiescent (Max) 10μA
Current - Output High, Low 24mA, 24mA
Logic Level - Low 0.4 V to 0.6 V
Logic Level - High 1.7 V to 2.2 V
Max Propagation Delay @ V, Max CL 6.5ns @ 3.3V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 14-DQFN (3x2.5)
Dimension 14-WFQFN Exposed Pad
Win Source Part Number 076317-74LCX14BQX
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian 74LCX14BQX CAD Model

Description

74LCX14BQX

The 74LCX14BQX is a Schmitt-trigger inverter designed for high-speed and low-power applications. This device is particularly effective in noise-prone environments, ensuring stable and reliable signal processing.

Applications and Projects:

  • Noisy signal processing
  • Wave shaping and timing applications
  • Switch debouncing circuits
  • Embedded control systems

Features and Benefits:

  • Excellent noise immunity enhancing performance stability
  • Minimal power requirements support energy-efficient designs
  • Responsive in dynamic signal environments
  • Wide voltage range compatibility (2.0V to 3.6V)

Additional Details: The 74LCX14BQX is a productive choice for applications necessitating high-speed and noise-tolerant signal inversions.
