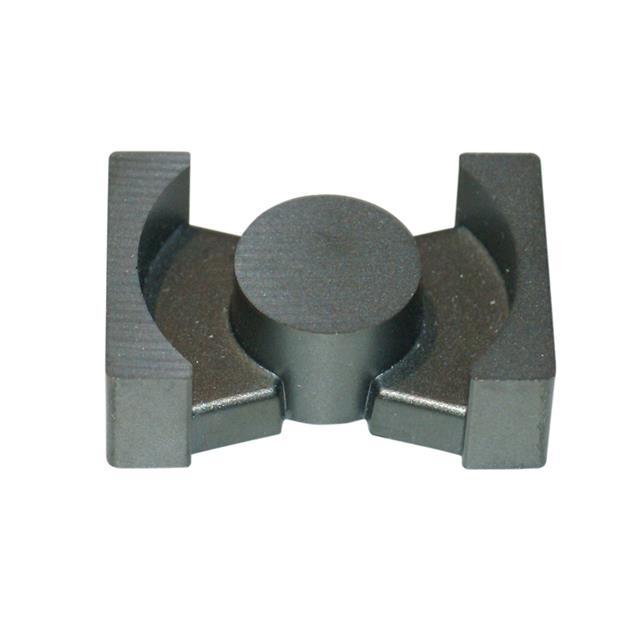

Same model may have multiple batches, images only for reference.
6578100121 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

6578100121

Part No 6578100121
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE EP 78 SET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type EP
Material 78
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2300
Core Factor (ΣI/A) mm⁻¹ 168.0
Effective Length (le) mm 18.5
Effective Area (Ae) mm2 11.0
Minimum Core Cross Section (Amin) mm2 8.5
Effective Magnetic Volume (Ve) mm3 203.0
Finish Uncoated
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528109-6578100121
Ultra Librarian 3D Model Ultra Librarian 6578100121 CAD Model
