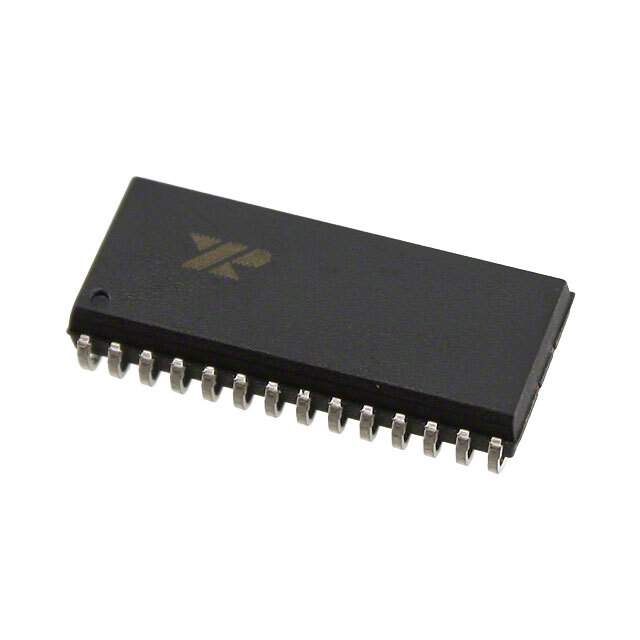

XRT7296IWTR-F Real Image
Same model may have multiple batches, images only for reference.

XRT7296IWTR-F

Part No XRT7296IWTR-F
Manufacturer Exar Corporation
Catalog Interface - Drivers, Receivers, Transceivers
Description IC LINE TX DS3/STS-1 E3 28SOJ
Datasheet
XRT7296IWTR-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Exar Corporation
Packaging Reel - TR
Status Active
Protocol DS3, E3, STS-1
Supply Voltage - Operating 4.75 V to 5.25 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 28-SOJ
Win Source Part Number 129875-XRT7296IWTR-F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XRT7296IWTR-F CAD Model

Description

The Exar Corporation XRT7296IWTR-F is a DS3, E3, STS-1 protocol integrated circuit.

  • Drivers/Receivers: Does not have any drivers/receivers
  • Operating Temperature: -40°C to 85°C
  • Case/Package: 28-SOJ
  • Operating Voltage: 4.75 V to 5.25 V
  • Category: integrated circuits
  • Status: currently active
  • Mounting type: SMD (SMT)
  • Supply and demand status: limited
