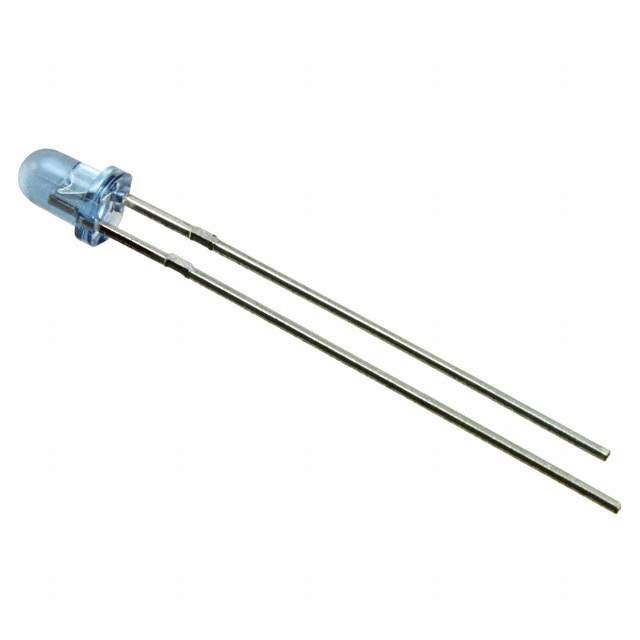

The IR204/H16/L10 is an infrared emitting diode (IRED) manufactured by Everlight Electronics Co Ltd. It emits infrared radiation at a specific wavelength, typically used in remote control systems, light curtains, and other applications requiring infrared transmission.

Applications

• Remote Control Systems: Used as the infrared transmitter in remote controls for TVs, DVD players, and other electronic devices.
• Light Curtains: Employed in safety light curtains to detect obstructions and prevent accidents in industrial equipment.
• Infrared Data Transmission: Utilized in devices that transmit data via infrared, such as some older PDAs and communication devices.
• Optical Switches: Functions as the light source in optical switches for detecting the presence or absence of an object.
• Proximity Sensors: Integrated into proximity sensors for detecting the presence of objects without physical contact.

Features

• High Radiant Intensity: Provides strong infrared signal for reliable transmission over distance.
• Peak Wavelength of 940nm: Standard infrared wavelength compatible with many receivers.
• Narrow Viewing Angle: Focuses the emitted light for efficient transmission in a specific direction.
• Fast Switching Speed: Enables rapid data transmission and responsive sensor operation.
• RoHS Compliant: Environmentally friendly, adhering to Restriction of Hazardous Substances standards.

Benefits

• Reliable Performance: High radiant intensity ensures reliable signal transmission even over longer distances.
• Energy Efficient: Low power consumption extends battery life in portable applications.
• Compact Size: Small footprint allows for easy integration into various electronic devices.
• Long Lifespan: Provides extended service life for reduced maintenance and replacement costs.
• Versatile Applications: Suitable for a wide range of applications requiring infrared transmission.

Additional Details

The IR204/H16/L10 is typically packaged in a through-hole format, allowing for easy mounting on printed circuit boards. The forward voltage and current requirements are detailed in the manufacturer's datasheet. The device should be operated within the specified temperature range for optimal performance. The radiant intensity is typically measured in milliwatts per steradian (mW/sr).
