The ELD207 is an optoisolator with a transistor output type.

• Output Type: transistor
• Application: optoisolators with transistor and photovoltaic output
• Package: tube
• Standard Package: 100 pieces
• Input Type: DC
• Current - DC Forward (If) (Max): 60 mA
• Voltage - Forward (Vf) (Typ): 1.2V
• Rise/Fall Time (Typ): 1.6μs, 2.2μs
• Channels: two
• Voltage Isolation: 3750Vrms
• Current Transfer Ratio (Min): 100% @ 10mA
• Voltage - Output (Max): 80V
• Vce Saturation (Max): 400mV
• Current Transfer Ratio (Max): 200% @ 10mA
• Turn On/Turn Off Time (Typ): 5μs, 4μs
• Mounting: surface mountable

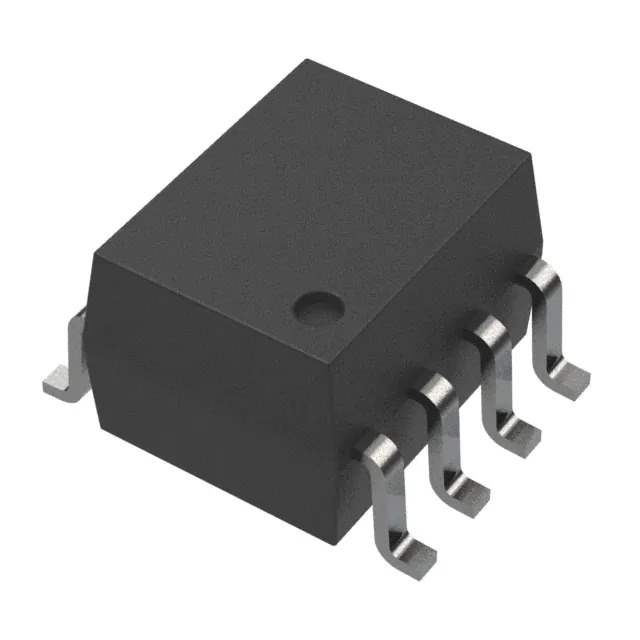

• Package: 8-SOIC
• Temperature Range: -55°C to 110°C
• Status: active
