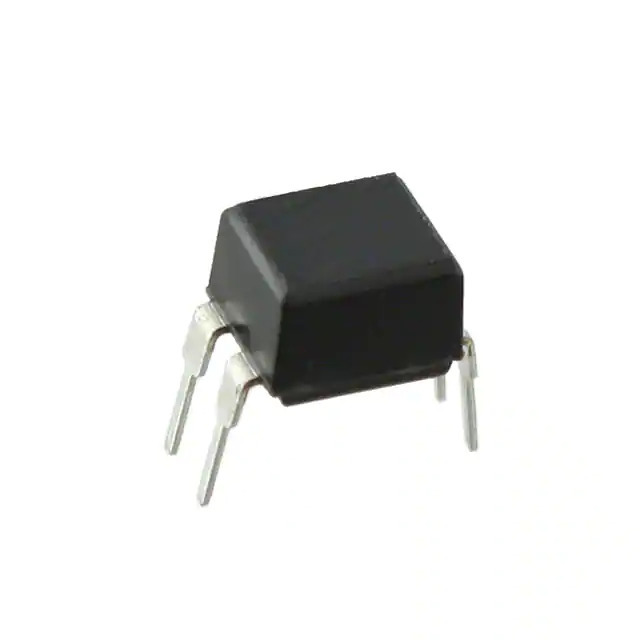

EL816(X)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EL816(X)
Manufacturer	Everlight Electronics Co Ltd
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISOLTR 5KV TRANSISTOR 4-DIP
Datasheet	EL816(X) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr	Everlight Electronics Co Ltd
Series	-
Package	Tube
Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	100% @ 5mA
Current Transfer Ratio (Max)	200% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor
Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	200mV
Temperature Range - Operating	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
Base Product Number	EL816
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.49.8000
Win Source Part Number	1378356-EL816(X)
Ultra Librarian 3D Model	Ultra Librarian EL816(X) CAD Model

Alternative Products

Description

The EL816(X) is a transistor output optoisolator from Everlight Electronics Co Ltd.

Category: Isolators - Optoisolators - Transistor, Photovoltaic Output
Operating Temperature: -55°C ~ 110°C
Voltage - Output (Max): 80V
Voltage - Forward (Vf) (Typ): 1.2V
Current Transfer Ratio (Min): 100% @ 5mA
Package / Case: 4-DIP
Mounting Type: Through Hole
Isolation Voltage: 5000Vrms
Current - Output / Channel: 50mA
Turn On / Turn Off Time (Typ): Typical Values
Input Type: DC
Current - DC Forward (If) (Max): 60mA
