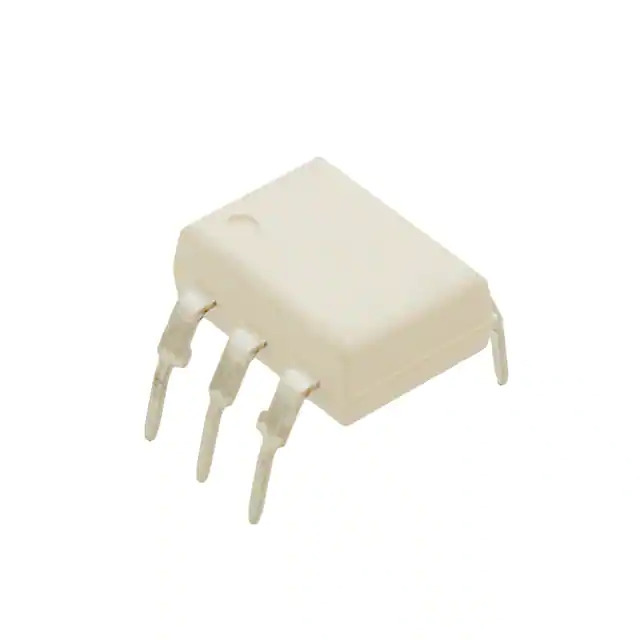

EL3063M Everlight Electronics Co Ltd
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Isolators - Optoisolators - Triac, SCR Output Optoisolators
Mfr Everlight Electronics Co Ltd
Series -
Package Tube
Product Status Active
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 600 V
Static dV/dt (Min) 1kV/µs
Current - LED Trigger (Ift) (Max) 5mA
Current - On State (It (RMS)) (Max) 100 mA
Current - Hold (Ih) 280µA (Typ)
Turn On Time -
Voltage - Forward (Vf) (Typ) 1.5V (Max)
Current - DC Forward (If) (Max) 60 mA
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Through Hole
Package / Case 6-DIP (0.400", 10.16mm)
Supplier Device Package 6-DIP
Approval Agency CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL
Base Product Number EL3063
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1378352-EL3063M
Ultra Librarian 3D Model Ultra Librarian EL3063M CAD Model

Description

The 1378352-EL3063M is an optoisolator component from Everlight Electronics Co Ltd.

  • Product Name: 1378352-EL3063M
  • Manufacturer: Everlight Electronics Co Ltd
  • Category: Isolators - Optoisolators - Triac, SCR Output Optoisolators
  • Voltage Off State: 600V
  • Voltage Isolation: 5000Vrms
  • Forward Voltage (Vf): 1.5V (Max)
  • On-State Current (It (RMS)): 100mA (Max)
  • Mounting Type: Through Hole
  • Package: 6-DIP
