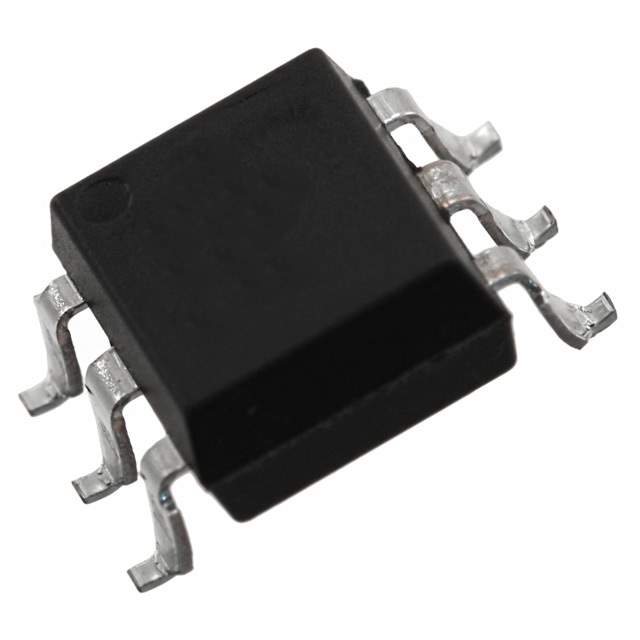

CNY17F-2S(TA)-V Real Image
Same model may have multiple batches, images only for reference.

CNY17F-2S(TA)-V

Part No CNY17F-2S(TA)-V
Manufacturer Everlight Electronics Co Ltd
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 5KV TRANSISTOR 6-SMD / Optoisolator Transistor Output 5000Vrms 1 Channel 6-SMD
Datasheet
CNY17F-2S(TA)-V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Manufacturer Everlight Electronics Co Ltd
Packaging Reel - TR
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 63% @ 10mA
Current Transfer Ratio (Max) 125% @ 10mA
Turn On / Turn Off Time (Typ) 10µs, 9µs
Rise / Fall Time (Typ) 6µs, 8µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Voltage - Forward (Vf) (Typ) 1.65V (Max)
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C ~ 110°C
Mounting Surface Mount
Case / Package 6-SMD, Gull Wing
Supplier Device Package 6-SMD
Base Product Number CNY17F
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Part Number 3907171780
Standard Package 1,000
Win Source Part Number 1331771-CNY17F-2S(TA)-V
Ultra Librarian 3D Model Ultra Librarian CNY17F-2S(TA)-V CAD Model

Description

The Everlight Electronics Co Ltd 1331771-CNY17F-2S(TA)-V is a surface mount optoisolator with a DC input and a transistor, photovoltaic output.

  • Input Type: DC
  • Output Type: transistor, photovoltaic output
  • Maximum DC Forward Current: 60mA
  • Forward Voltage: 1.65V (Max)
  • Rise/Fall Time (Typ): 6μs and 8μs, respectively
  • Voltage Isolation: 5000Vrms
  • Current Transfer Ratio: 63% @ 10mA
  • Maximum Current Transfer Ratio: 125% @ 10mA
  • Turn-On/Turn-Off Time (Typ): 10μs and 9μs, respectively
  • ROHS3 Compliant: Yes

The device is suitable for use in isolators and optoisolators - transistor, photovoltaic output applications.
