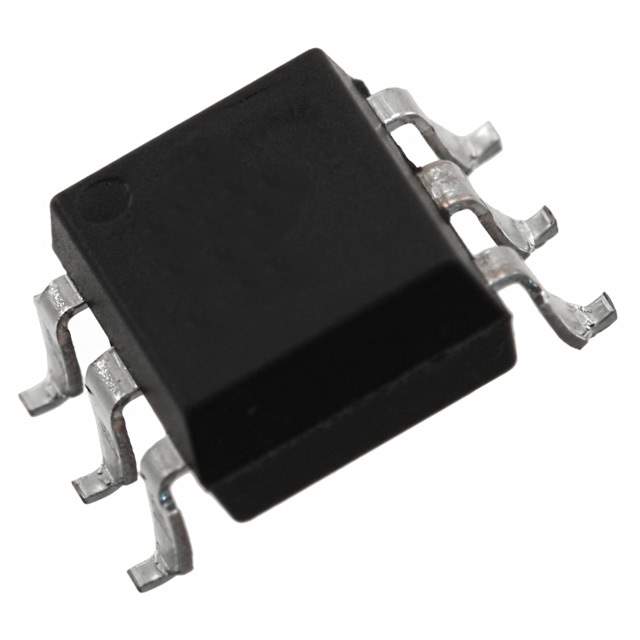

4N30S1(TA) Real Image
Same model may have multiple batches, images only for reference.

4N30S1(TA)

Part No 4N30S1(TA)
Manufacturer Everlight Electronics Co Ltd
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV DARL W/BASE 6SMD
Datasheet
4N30S1(TA) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Everlight Electronics Co Ltd
Packaging Reel package
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Minimum) 100% @ 10mA
Turn On / Turn Off Time (Typ) 5μs, 40μs (Maximum)
Input Type DC
Output Type Darlington with Base
Output Voltage MAX 55V
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 60mA
Vce Saturation (Maximum) 1V
Operating Temperature Range -55°C ~ 100°C
Mounting SMD
Package 6-SMD, Gull Wing
Manufacturer Package 6-SMD
Win Source Part Number 763787-4N30S1(TA)
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 4N30S1(TA) CAD Model

Description

The 4N30S1(TA) from Everlight Electronics Co Ltd is a Darlington with base output type optocoupler.

  • Output Type: Darlington with Base
  • Voltage-Forward: 1.2V
  • Isolation Voltage: 5000Vrms
  • Current Transfer Ratio: 100% @ 10mA
  • Vce Saturation: 1V
  • Package: 6-SMD
  • Operating Temperature: -55°C to 100°C
  • Turn on/off Time: 5μs/40μs (maximum)
  • Output Voltage MAX: 55V
  • Supply and Demand Status: Limited
