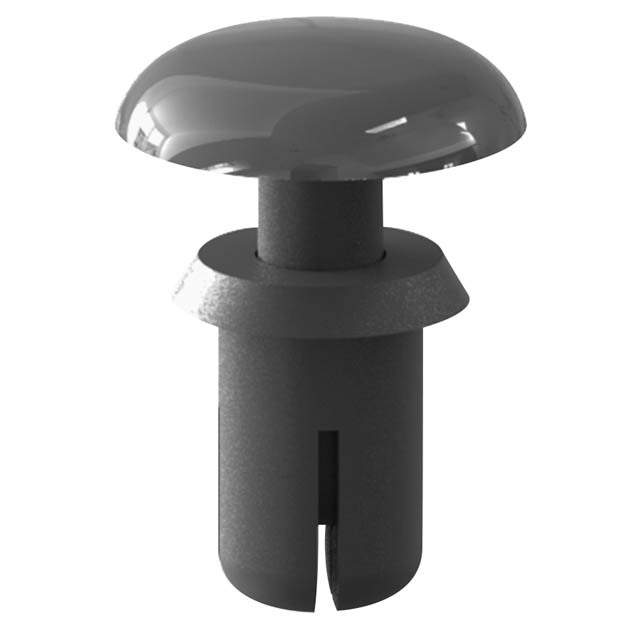

SR-3535B Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Hardware, Fasteners, Accessories>Rivets
Mfr Essentra Components
Series Richco, SR
Package Bulk
Type Snap Rivet
Rivet Diameter 0.138" (3.51mm)
Rivet Length 0.140" (3.56mm)
Head Diameter 0.252" (6.40mm)
Head Height 0.063" (1.60mm) 1/16"
Hole Diameter 0.144" (3.66mm)
Grip Range 0.047" ~ 0.083" (1.19mm ~ 2.11mm)
Color Black
Material Nylon
Other Names SR3535B,SR-3535BR,SR-3535B,RPC5139,61100260
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 3926.90.9985
Win Source Part Number 1275122-SR-3535B
Ultra Librarian 3D Model Ultra Librarian SR-3535B CAD Model

Description

The Richco SR snap rivet is a fastener accessory that is ideal for use in various hardware applications.

  • Material: nylon
  • Rivet Diameter: 0.138 inches
  • Rivet Length: 0.140 inches
  • Head Diameter: 0.252 inches
  • Head Height: 0.063 inches
  • Grip Range: 0.047 to 0.083 inches
  • Color: black
  • Packaging: bulk
  • Standard Package: 1,000 pieces
