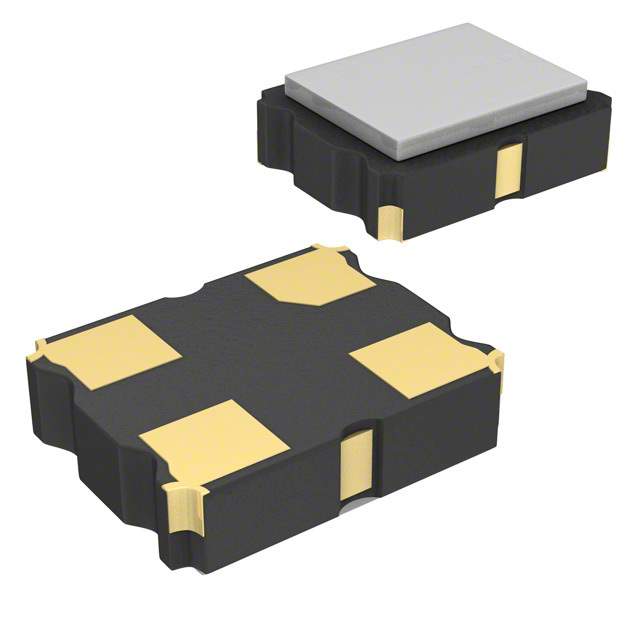

TG2520SMN 20.0000M-ECGNNM3

Name: TG2520SMN 20.0000M-ECGNNM3
Brand: Epson Company
SKU: 1337497
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TG2520SMN 20.0000M-ECGNNM3
Manufacturer	Epson Company
Catalog	Oscillators
Description	XTAL OSC TCXO 20.0000MHZ CSWV / 20 MHz TCXO Clipped Sine Wave Oscillator 1.8V 4-SMD, No Lead
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Crystals, Oscillators, Resonators - Oscillators
Mfr	EPSON
Series	TG2520SMN
Package	Tape & Reel
Base Resonator	Crystal
Type	TCXO
Frequency	20 MHz
Output	Clipped Sine Wave
Voltage - Supply	1.8V
Frequency Stability	±500ppb
Temperature Range - Operating	-40°C ~ 85°C
Current - Supply (Max)	1.5mA
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.031" (0.80mm)
Standard Package	250
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1337497-TG2520SMN 20.0000M-ECGNNM3
Ultra Librarian 3D Model	Ultra Librarian TG2520SMN 20.0000M-ECGNNM3 CAD Model

Alternative Products

Description

The Epson TG2520SMN 20.0000M-ECGNNM3 is a surface mount oscillator that belongs to the TG2520SMN series.

Series: TG2520SMN
Mounting Type: Surface Mount
Oscillator Type: Clipped Sine Wave
Frequency: 20MHz
Frequency Stability: ±500ppb
Voltage Supply: 1.8V
Supply Current (Max): 1.5mA
Size: 0.098” L x 0.079” W (2.50mm x 2.00mm)
Height (Seated): 0.031” (0.80mm)
Packaging: Tape and Reel
Standard Package: 250
Temperature Range: -40°C to 85°C
