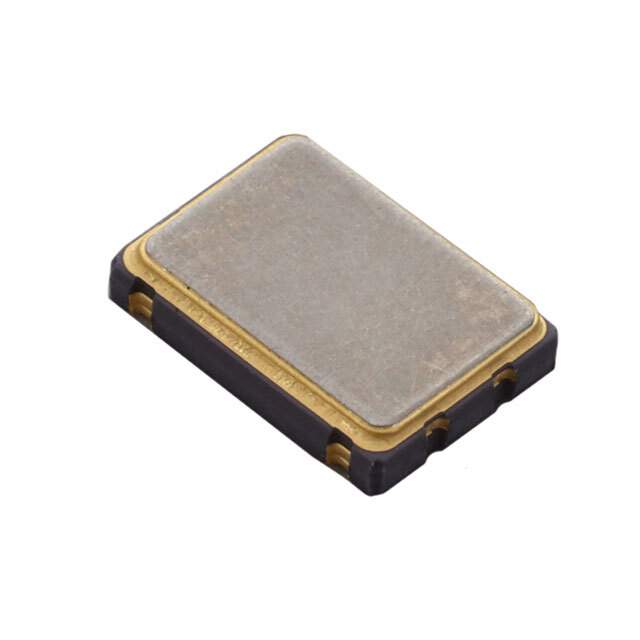

SG-8002CA 28.0000M-PHMB Real Image
Same model may have multiple batches, images only for reference.

SG-8002CA 28.0000M-PHMB

Part No SG-8002CA 28.0000M-PHMB
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 28.0000MHZ CMOS SMD / 28 MHz XO (Standard) CMOS Oscillator 5V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series SG-8002CA
Package Bulk
Product Status Not For New Designs
Base Resonator Crystal
Type XO (Standard)
Frequency 28 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 5V
Frequency Stability ±100ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 45mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Current - Supply (Disable) (Max) 30mA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names SG-8002CA 28.0000M-PHMB-ND,SG-8002CA28.0000M-PHMB
Standard Package 1
Win Source Part Number 975685-SG-8002CA 28.0000M-PHMB
Ultra Librarian 3D Model Ultra Librarian SG-8002CA 28.0000M-PHMB CAD Model

Description

The SG-8002CA 28.0000M-PHMB is a CMOS output crystal oscillator with a frequency of 28 MHz.

  • Series: SG-8002CA
  • Package: bulk
  • Height: 0.059 inches
  • Frequency Stability: ±100ppm
  • Maximum Supply Current: 45mA
  • Enable/Disable: enable/disable function
  • Voltage Supply: 5V
  • Operating Temperature: -40°C to 85°C
  • Dimension: 0.276 inches L x 0.197 inches W
  • Manufacturer: Epson
  • New Designs: not recommended for new designs
