Same model may have multiple batches, images only for reference.

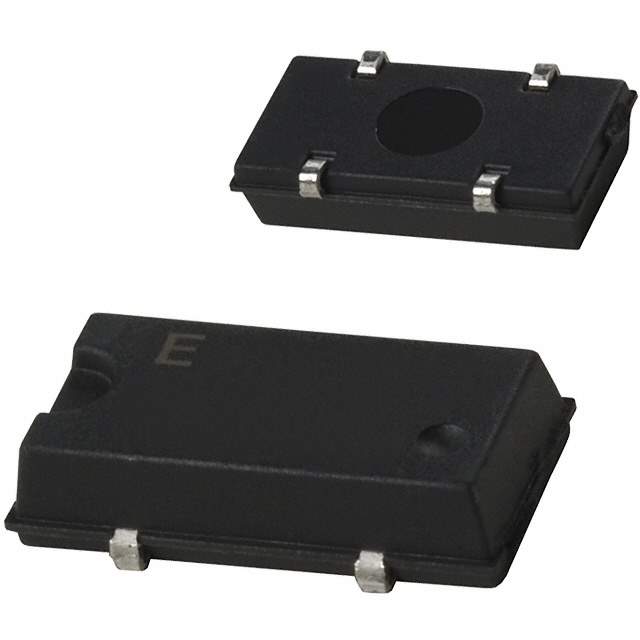

SG-636PCW 48.0000MC: ROHS Real Image
Same model may have multiple batches, images only for reference.

SG-636PCW 48.0000MC: ROHS

Part No SG-636PCW 48.0000MC: ROHS
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 48.0000MHZ CMOS TTL / 48 MHz XO (Standard) CMOS, TTL Oscillator 3.3V Enable/Disable 4-SOJ, 5.08mm pitch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series SG-636PCW
Package Bulk
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 48 MHz
Function Enable/Disable
Output CMOS, TTL
Voltage - Supply 3.3V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 28mA
Mounting SMD (SMT)
Package / Case 4-SOJ, 5.08mm pitch
Dimension 0.413" L x 0.197" W (10.50mm x 5.00mm)
Height - Seated (Max) 0.106" (2.70mm)
Current - Supply (Disable) (Max) 16mA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1
Win Source Part Number 1092597-SG-636PCW 48.0000MC: ROHS
Ultra Librarian 3D Model Ultra Librarian SG-636PCW 48.0000MC: ROHS CAD Model

Description

The SG-636PCW is a crystal oscillator with a frequency of 48 MHz.

  • Type: XO (Standard)
  • Output: CMOS and TTL
  • Package: 4-SOJ with a 5.08mm pitch
  • Frequency Stability: ±100ppm
  • Current Supply: 28mA
  • Current Supply (disable): 16mA
  • Voltage Supply: 3.3V
  • Temperature Range: -20°C ~ 70°C
  • Dimensions: 0.413" L x 0.197" W (10.50mm x 5.00mm)
  • Manufacturer: EPSON
  • Status: now obsolete
