Same model may have multiple batches, images only for reference.

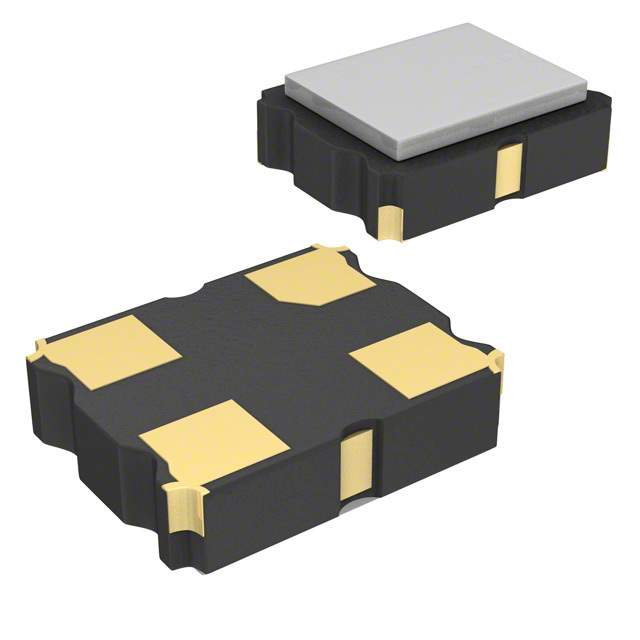

SG-210STF 24.0000ML0 Real Image
Same model may have multiple batches, images only for reference.

SG-210STF 24.0000ML0

Part No SG-210STF 24.0000ML0
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 24.0000MHZ CMOS SMD / 24 MHz XO (Standard) CMOS Oscillator 1.6V ~ 3.6V Standby (Power Down) 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series SG-210STF
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 24 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.6V ~ 3.6V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 2.2mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 2.7µA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names SER4078TR,SG-210STF24.0000ML0,X1G004171003114,SER4078CT,835637,SG-210STF 24.0000ML0-ND,SER4078DKR
Standard Package 1,000
Win Source Part Number 1092535-SG-210STF 24.0000ML0
Ultra Librarian 3D Model Ultra Librarian SG-210STF 24.0000ML0 CAD Model

Description

The SG-210STF series of oscillators by EPSON includes the SG-210STF24.0000ML0, which is a 24 MHz XO (Standard) oscillator with a standby (power down) function.

  • Frequency: 24 MHz
  • Type: XO (Standard)
  • Function: Standby (Power Down)
  • Output: CMOS
  • Frequency Stability: ±50ppm
  • Voltage Supply Range: 1.6V to 3.6V
  • Current Supply (Max): 2.2mA
  • Current Supply (Disable) (Max): 2.7µA
  • Mounting: SMD (SMT)
  • Packaging: Tape and Reel
  • Dimension: 0.098 inches in length and 0.079 inches in width
  • Manufacturer: EPSON
