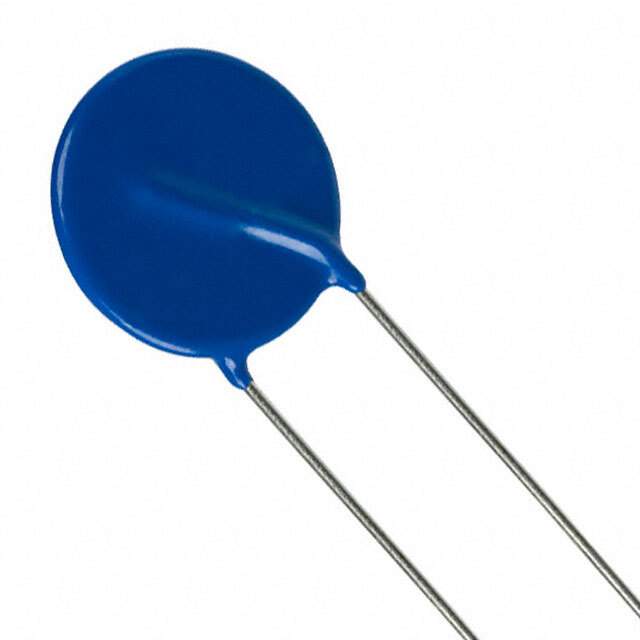

S25K420 Real Image
Same model may have multiple batches, images only for reference.

S25K420

Part No S25K420
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Description VARISTOR 680V 20KA DISC 27.5MM
Datasheet
S25K420 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Varistor Voltage (Min) 612V
Varistor Voltage (Typ) 680V
Varistor Voltage (Max) 748V
Current - Surge 20kA
Energy 700J
Number of Circuits 1
Maximum AC Volts 420VAC
Maximum DC Volts 560VDC
Mounting Through Hole
Dimension Disc 27.5mm
Win Source Part Number 185849-S25K420
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian S25K420 CAD Model

Description

The EPCOS (TDK) 185849-S25K420 is a through-hole varistor with a maximum AC voltage of 420VAC and maximum DC voltage of 560VDC.

  • Maximum AC Voltage: 420VAC
  • Maximum DC Voltage: 560VDC
  • Varistor Voltage Range: 612V to 748V
  • Energy Rating: 700J
  • Surge Current: 20kA
  • Applications: Circuit Protection
  • Packaging: Bulk
  • Disc Size: 27.5mm
  • Popularity: Medium
