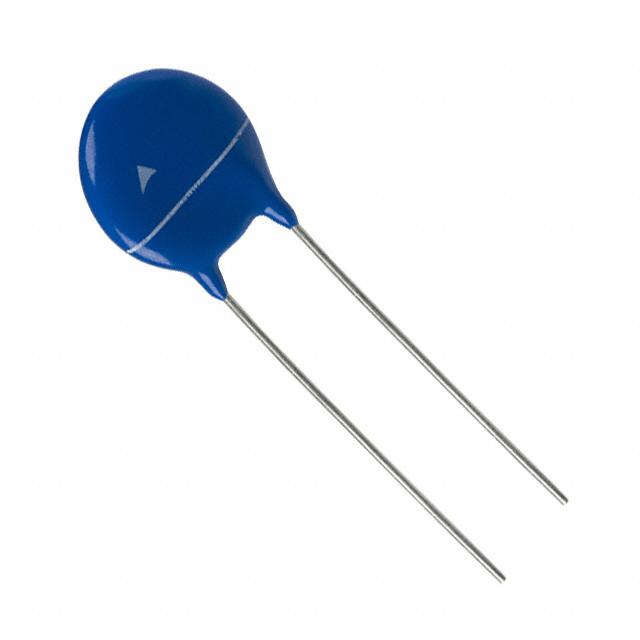

The EPCOS (TDK) 098595-S14K150 is a varistor that provides protection against overvoltage transients.

• Capacitance: 750pF @ 1kHz
• Varistor Voltage: 216V (Min), 240V (Typ), 264V (Max)
• Surge Current: 4.5kA
• Maximum AC Voltage: 150VAC
• Maximum DC Voltage: 200VDC
• Energy Rating: 40J
• Operating Temperature Range: -40°C to 85°C (TA)

The varistor is designed to handle a surge current of 4.5kA and has a maximum AC voltage of 150VAC and a maximum DC voltage of 200VDC. The varistor has an energy rating of 40J and is suitable for use in circuit protection applications. It is mounted through hole and comes in a cut reel packaging. The dimension of the disc is 14mm.
