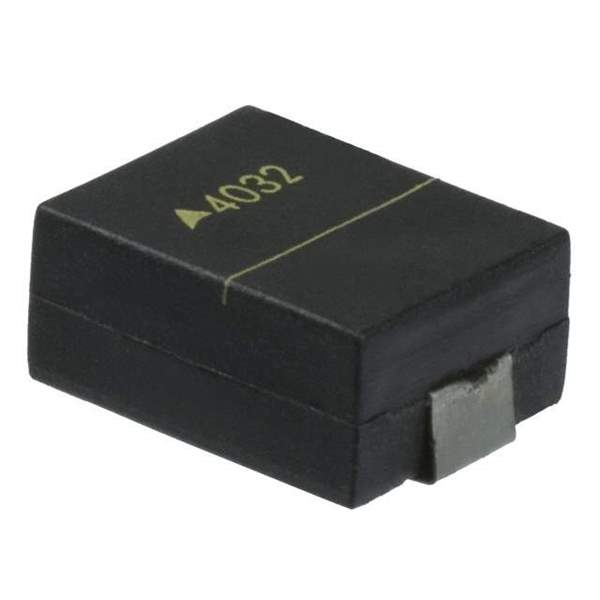

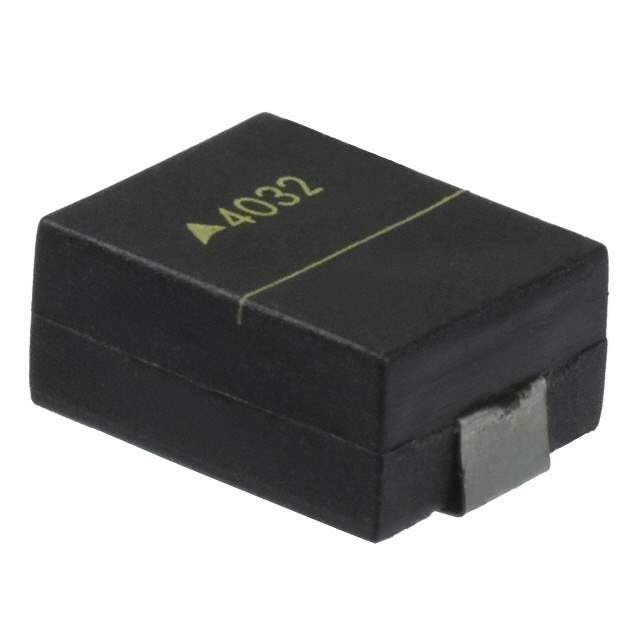

The CU4032K25G2 is a multilayer varistor manufactured by EPCOS (TDK). It falls under the category of Transient Voltage Suppressors (TVS), specifically designed to protect sensitive electronic components from voltage surges and electrostatic discharge (ESD). The CU4032K25G2 features a compact 1608 (4032 metric) chip size, making it suitable for space-constrained applications.

Applications:

• Mobile Devices: Used in smartphones, tablets, and other mobile devices to protect against ESD and voltage transients on I/O ports and power lines.
• Consumer Electronics: Employed in televisions, set-top boxes, and audio equipment to protect sensitive components from voltage surges.
• Industrial Equipment: Integrated into industrial controllers, sensors, and communication interfaces to enhance reliability and protect against electrical disturbances.
• Automotive Electronics: Utilized in automotive control units (ECUs) and sensor modules to provide protection against voltage transients in harsh automotive environments.
• Data Lines: Protects data lines such as USB, HDMI, and Ethernet interfaces from ESD and voltage surges.

Features:

• Multilayer Construction: Multilayer structure provides high energy absorption capability in a small size.
• Fast Response Time: Quickly responds to transient voltage events, clamping the voltage to a safe level.
• Bidirectional Protection: Offers bidirectional protection against positive and negative voltage surges.
• Low Clamping Voltage: Low clamping voltage ensures effective protection of sensitive components.
• Surface Mount Device (SMD): Suitable for automated assembly processes, reducing manufacturing costs.

Benefits:

• Enhanced ESD Protection: Provides robust ESD protection, preventing damage to sensitive electronic components.
• Improved Reliability: Increases the reliability and lifespan of electronic devices by protecting them from voltage surges.
• Reduced Field Failures: Minimizes the risk of field failures due to transient voltage events, reducing warranty costs.
• Compact Design: Small form factor allows for easy integration into space-constrained applications.
• Cost-Effective Solution: Provides a cost-effective solution for transient voltage protection.

Additional Details:

The CU4032K25G2 has specific electrical characteristics such as the varistor voltage, clamping voltage, surge current capability, and capacitance. These parameters are detailed in the manufacturer's datasheet. The device is constructed using a ceramic material with multiple layers to enhance its energy absorption capability. Its compact size and surface mount design make it easy to integrate into a variety of electronic devices. This part is RoHS compliant.

When selecting the CU4032K25G2, consult the manufacturer's datasheet to ensure that its electrical characteristics meet the specific requirements of the application. Considerations should include the expected voltage surge levels, the sensitivity of the protected components, and the operating environment.
