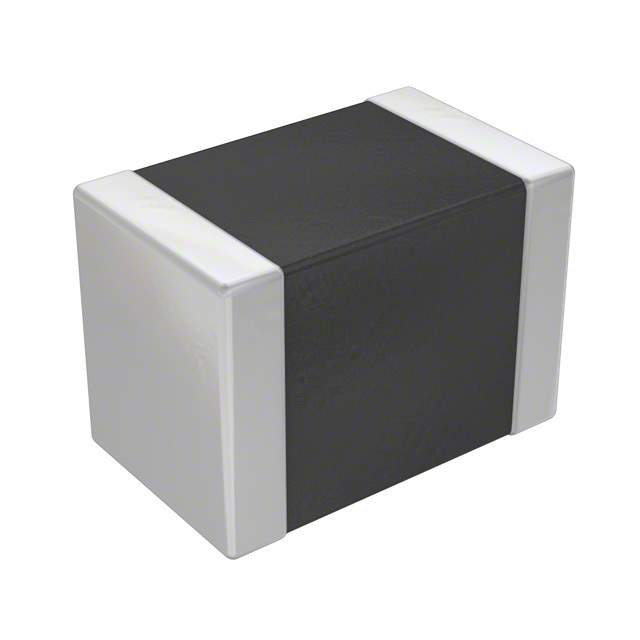

The CT0805M4G is a multilayer varistor (MLV) from EPCOS (TDK), specifically designed for transient voltage suppression (TVS). It is engineered to protect sensitive electronic components from damage caused by electrostatic discharge (ESD), lightning strikes, and other transient voltage surges. Housed in a compact 0805 surface-mount package, it is ideal for high-density circuit board applications where space is at a premium.

Applications

• Mobile phones and smartphones
• Tablets and portable devices
• Consumer electronics
• Automotive electronics
• Industrial equipment
• Data lines and I/O ports

Features

• Multilayer varistor (MLV) technology
• Compact 0805 case size
• Low clamping voltage
• High surge current capability
• Fast response time
• Bidirectional protection
• RoHS compliant

Benefits

• Provides effective ESD and transient voltage protection
• Protects sensitive electronic components
• Improves the reliability and lifespan of electronic devices
• Saves board space
• Facilitates compliance with industry standards
• Reduces warranty claims and repair costs

Additional Details

The CT0805M4G has a breakdown voltage of approximately 4V and offers a surge current capability exceeding common standards. It operates within a temperature range of -55°C to +125°C and is optimized for reflow soldering processes. This device offers a low capacitance value, making it suitable for use in high-speed data lines. The small footprint makes it possible to be positioned directly adjacent to the circuitry being protected, further improving the effectiveness of the suppression.
