Same model may have multiple batches, images only for reference.

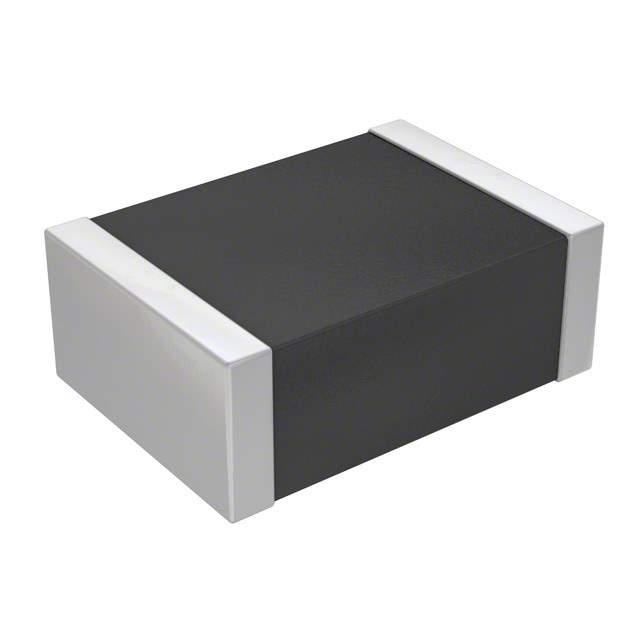

CN1812L8G Real Image
Same model may have multiple batches, images only for reference.

CN1812L8G

Part No CN1812L8G
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr EPCOS - TDK Electronics
Package Tape & Reel (TR)
Product Status Obsolete
Maximum AC Volts 8 V
Maximum DC Volts 11 V
Varistor Voltage (Min) 12.75 V
Varistor Voltage (Typ) 15 V
Varistor Voltage (Max) 17.25 V
Current - Surge 800 A
Energy 1.8J
Number of Circuits 1
Capacitance @ Frequency 6000 pF @ 1 kHz
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 1812 (4532 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1315045-CN1812L8G
Ultra Librarian 3D Model Ultra Librarian CN1812L8G CAD Model

Description

The 1315045-CN1812L8G is a surface mount TVS varistor from EPCOS - TDK Electronics.

  • Package: 1812 (4532 Metric)
  • Capacitance: 6000 pF @ 1 kHz
  • Varistor Voltage (Min): 12.75 V
  • Varistor Voltage (Max): 17.25 V
  • Surge Current: 800 A
  • Maximum AC Voltage: 8 V
  • Maximum DC Voltage: 11 V
  • Energy Rating: 1.8J
  • Temperature Range: -55°C to 125°C (TA)
  • Status: Obsolete
