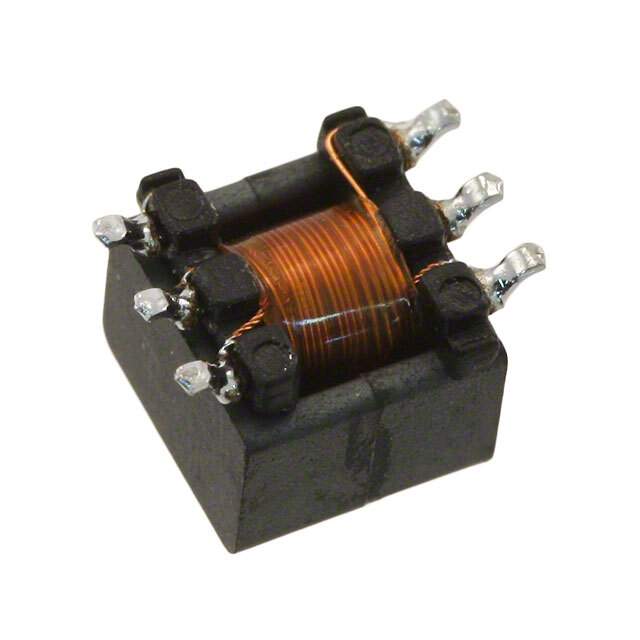

B82804A0264A210 Real Image
Same model may have multiple batches, images only for reference.

B82804A0264A210

Part No B82804A0264A210
Manufacturer EPCOS (TDK)
Catalog Pulse Transformers
Description PULSE XFMR 1:1:1 264UH / 264µH Gate Drive Pulse Transformer 1:1:1 Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr EPCOS - TDK Electronics
Series EP5
Package Tape & Reel
Transformer Type Gate Drive
Inductance 264µH
ET (Volt-Time) 22.4VµS
Mounting Type Surface Mount
Size / Dimension 0.264" L x 0.240" W (6.70mm x 6.10mm)
Height - Seated (Max) 0.213" (5.40mm)
Temperature Range - Operating -40°C ~ 125°C
Standard Package 850
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1337562-B82804A0264A210
Ultra Librarian 3D Model Ultra Librarian B82804A0264A210 CAD Model

Description

The B82804A0264A210 is a surface mount pulse transformer from EPCOS - TDK Electronics.

  • Manufacturer: EPCOS - TDK Electronics
  • Product: B82804A0264A210
  • Series: EP5
  • Inductance: 264µH
  • Application: Gate Drive
  • Package: Tape & Reel
  • Size: 0.264" L x 0.240" W (6.70mm x 6.10mm)
  • Height: 0.213" (5.40mm)
  • Temperature Range: -40°C to 125°C
  • ROHS: Compliant
  • ET (Volt-Time): 22.4VµS
  • REACH: Unaffected
