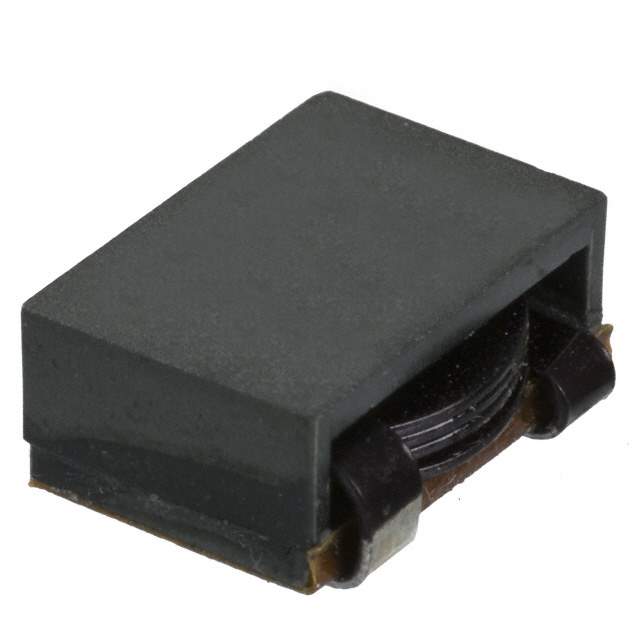

B82559A501A13

Name: B82559A501A13
Brand: EPCOS (TDK)
SKU: 1002164
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B82559A501A13
Manufacturer	EPCOS (TDK)
Catalog	Fixed Inductors
Description	Ind Power Shielded Wirewound 500nH 10% 10KHz Ferrite 30A Blister T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mounting	SMD (SMT)
Case / Package	Nonstandard
Composition	Wirewound
Core Material	Ferrite
Current Rating	30 A
DC Current	30 A
DC Resistance (DCR)	780 µΩ
Depth	11 mm
Height	4.95 mm
Height - Seated (Max)	4.953 mm
Inductance	500 nH
Lead Free	Yes
Length	13.2 mm
Max DC Current	30 A
Maximum Operating Temperature	130 °C
Military Standard	Not
Min Operating Temperature	-40 °C
Mount	Surface Mount
Number of Pins	2
Radiation Hardening	No
RoHS	Compliant
Saturation Current	30 A
Shielding	Shielded
Termination	SMD/SMT
Test Frequency	10 kHz
Tolerance	10 %
Weight	2.599991 g
Width	10.6934 mm
Win Source Part Number	1002164-B82559A501A13
Categories	Fixed Inductors
Manufacturer	EPCOS (TDK)
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian B82559A501A13 CAD Model

Alternative Products

Description

The B82559A501A13 is a fixed inductor designed by EPCOS (TDK).

Mounting: SMD (SMT) technology
Termination: SMD/SMT
Current Rating: 30 A
Inductance: 500 nH
DC Resistance (DCR): 780 μΩ
Tolerance: 10%
Dimensions: 13.2 mm x 10.6934 mm x 4.95 mm (L x W x H)
Weight: 2.599991 g
Maximum Operating Temperature: 130°C
RoHS: Compliant
