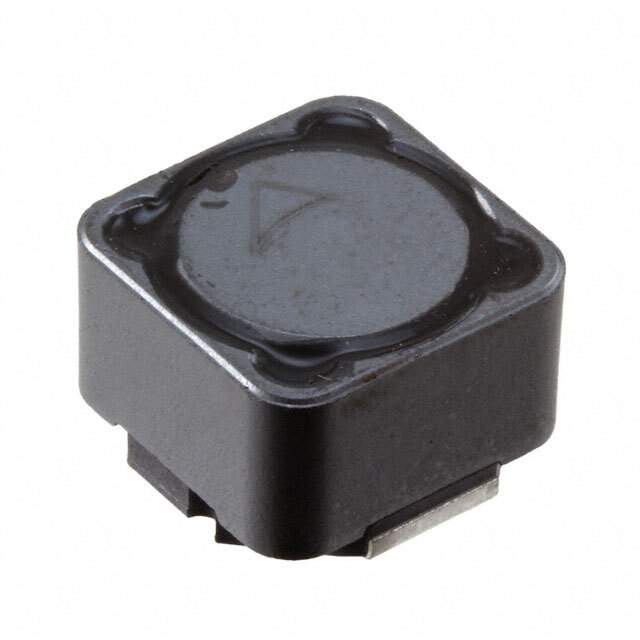

B82477P4224M000 Real Image
Same model may have multiple batches, images only for reference.

B82477P4224M000

Part No B82477P4224M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 220UH 1.24A 305MOHM SM / 220 µH Shielded Drum Core, Wirewound Inductor 1.24 A 305mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer EPCOS - TDK Electronics
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±20%
Current Rating (Amps) 1.24 A
Current - Saturation (Isat) 1.35A
Shielding Shielded
DC Resistance (DCR) 305mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.335" (8.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 495-75342-6,B82477P4224M,495-75342-2,495-75342-1,B82477P4224M-ND
Standard Package 350
Win Source Part Number 1328485-B82477P4224M000
Ultra Librarian 3D Model Ultra Librarian B82477P4224M000 CAD Model

Description

This EPCOS - TDK Electronics fixed inductor is a high-quality electronic component that is ideal for a wide range of applications.

  • Manufacturer: EPCOS - TDK Electronics
  • Core Type: Drum core, wirewound
  • Shielding: Yes
  • Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Inductance: 220 µH
  • Seated Height: 0.335" (8.50mm) Max
  • DC Resistance (DCR): 305mOhm Max
  • AEC-Q200 Rated: Yes
  • Current Rating: 1.24 A
  • Core Material: ferrite
  • Tolerance: ±20%
  • Mounting Type: surface mount
  • Frequency Test: 100 kHz
  • REACH Unaffected: Yes
  • HTSUS: 8504.50.4000
  • Other Part Numbers: 495-75342-6, B82477P4224M, 495-75342-2, 495-75342-1, and B82477P4224M-ND
