Same model may have multiple batches, images only for reference.

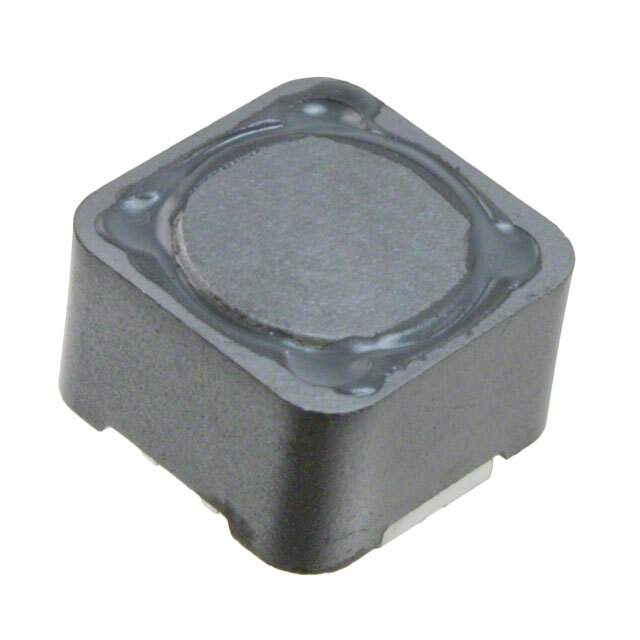

B82477G4472M000 Real Image
Same model may have multiple batches, images only for reference.

B82477G4472M000

Part No B82477G4472M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 4.7UH 6.8A 14 MOHM SMD / 4.7 µH Shielded Drum Core, Wirewound Inductor 6.8 A 14mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr EPCOS - TDK Electronics
Series B82477G4
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 6.8 A
Current - Saturation (Isat) 8.6A
Shielding Shielded
DC Resistance (DCR) 14mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.504" L x 0.504" W (12.80mm x 12.80mm)
Height - Seated (Max) 0.315" (8.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 495-1821-2,-495-1821-6,B82477G4472M,495-1821-6,495-1821-1,-495-1821-1,-B82477G4472M
Standard Package 400
Win Source Part Number 1002737-B82477G4472M000
Ultra Librarian 3D Model Ultra Librarian B82477G4472M000 CAD Model

Description

This inductor is a drum core, wirewound type manufactured by EPCOS - TDK Electronics.

  • Manufacturer: EPCOS - TDK Electronics
  • Win Source Part Number: 1002737-B82477G4472M000
  • Type: Drum core, wirewound
  • Shielding: Shielded
  • Inductance: 4.7 microhenries
  • Tolerance: ±20%
  • DC Resistance (DCR): 14mOhm Max
  • Current Rating: 6.8 A
  • Saturation Current: 8.6A
  • Temperature Range: Between -55°C and 125°C
  • Dimension: 0.504" L x 0.504" W (12.80mm x 12.80mm)
