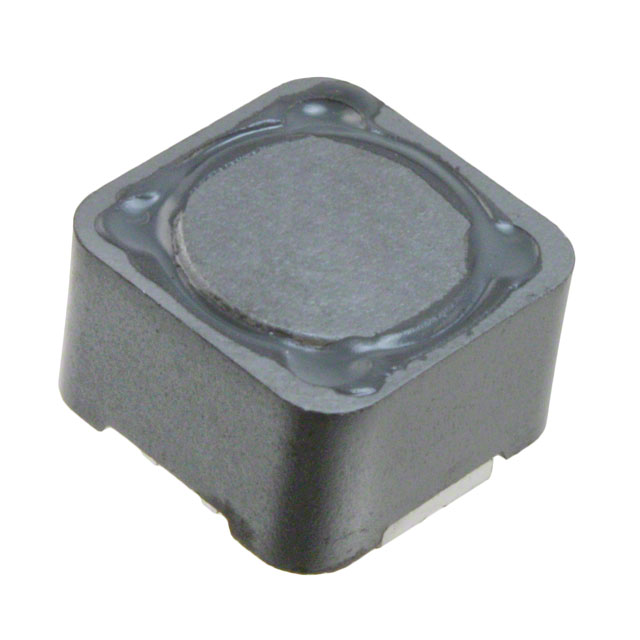

B82477G4472M EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B82477G4472M

Part No B82477G4472M
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 4.7UH 6.8A 14 MOHM SMD
Datasheet
B82477G4472M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 6.8A
Current - Saturation 8.6A
DC Resistance (DCR) 14 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.315" (8.00mm)
Win Source Part Number 000150-B82477G4472M
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B82477G4472M CAD Model

Description

Overview

The B82477G4472M inductor stands out as a high-performance solution for power electronics. Designed with cutting-edge materials, it offers unmatched inductive performance and efficiency, perfect for critical and large-scale applications.

Applications

  • Power Distribution Networks
  • Large-Scale Industrial Systems
  • Energy Harvesting Applications
  • High-Performance Computing

Features and Benefits

  • Exceptional Power Handling: Accommodates high power levels with ease.
  • Thermal Efficiency: Offers superior heat dissipation for enhanced reliability.
  • Highly Efficient Design: Reduces energy waste, promoting sustainable operation.
  • Comprehensive Range Compatibility: Adapts to various frequency ranges, supporting versatile applications.
