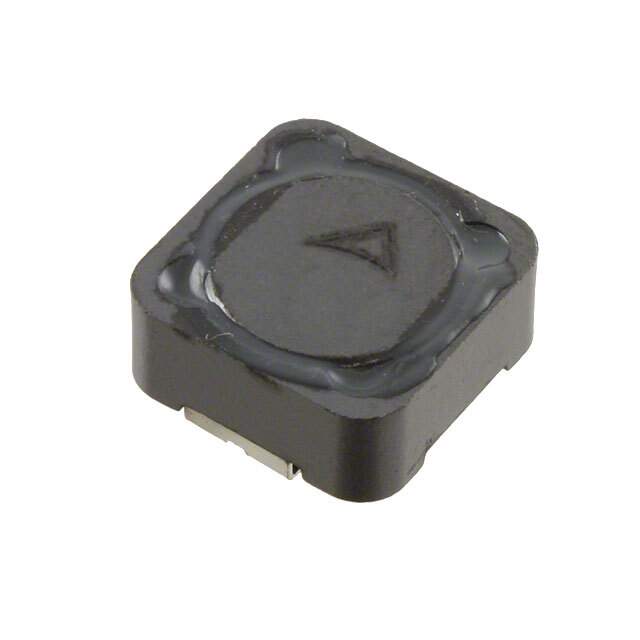

B82477G2104M Real Image
Same model may have multiple batches, images only for reference.

B82477G2104M

Part No B82477G2104M
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 100uH 20% 1KHz Ferrite 1.3A 0.16Ohm DCR T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Nonstandard
Composition Wirewound
Core Material Ferrite
Current Rating 1.3 A
DC Current 1.3 A
DC Resistance (DCR) 160 mΩ
Depth 12.3 mm
Height 6 mm
Height - Seated (Max) 5.9944 mm
Inductance 100 µH
Inductance Tolerance 20 %
Lead Free Yes
Length 12.3 mm
Max DC Current 1.3 A
Military Standard Not
Mount Surface Mount
Number of Pins 2
Packaging Cut Tape
Radiation Hardening No
REACH SVHC Unknown
RMS Current (Irms) 1.3 A
RoHS Compliant
Schedule B 8504500000, 8504500000
Series Resistance 160 mΩ
Shielding Shielded
Termination SMD/SMT
Test Frequency 1 kHz
Tolerance 20 %
Weight 3.200009 g
Width 12.2936 mm
Win Source Part Number 1047967-B82477G2104M
Categories Fixed Inductors
Manufacturer EPCOS (TDK)
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B82477G2104M CAD Model

Description

The supply and demand status is limited.

  • Inductance: 100 µH
  • Tolerance: 20%
  • Shielding: Shielded
  • Component Type: Fixed inductor
