Same model may have multiple batches, images only for reference.

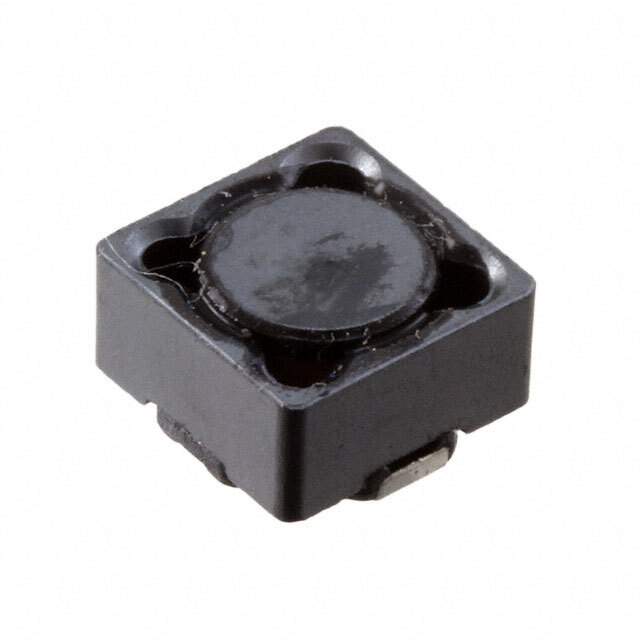

B82472P6103M000 Real Image
Same model may have multiple batches, images only for reference.

B82472P6103M000

Part No B82472P6103M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 10UH 1.9A 55 MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 1.9 A 55mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr EPCOS - TDK Electronics
Series B82472P6
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 1.9 A
Current - Saturation (Isat) 1.4A
Shielding Shielded
DC Resistance (DCR) 55mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) 0.177" (4.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 495-76045-6,B82472P6103M-ND,B82472P6103M,495-76045-2,495-76045-1
Standard Package 1,000
Win Source Part Number 1001019-B82472P6103M000
Ultra Librarian 3D Model Ultra Librarian B82472P6103M000 CAD Model

Description

The B82472P6103M000 from EPCOS (TDK) is a fixed inductor that has a drum core, wirewound type.

  • Type: Drum core, wirewound
  • Shielding: Shielded
  • Mounting Technology: SMD (SMT)
  • Inductance: 10 μH
  • Tolerance: ±20%
  • DC Resistance: 55 mOhm max
  • Current Rating: 1.9 A
  • Series: B82472P6
  • AEC-Q200: Rated
  • Core Material: Ferrite
  • Q factor: 45
  • Temperature Range: -55°C to 150°C
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • REACH: Unaffected
  • Standard Package: 1,000
  • Package/Case: Nonstandard
